Overview

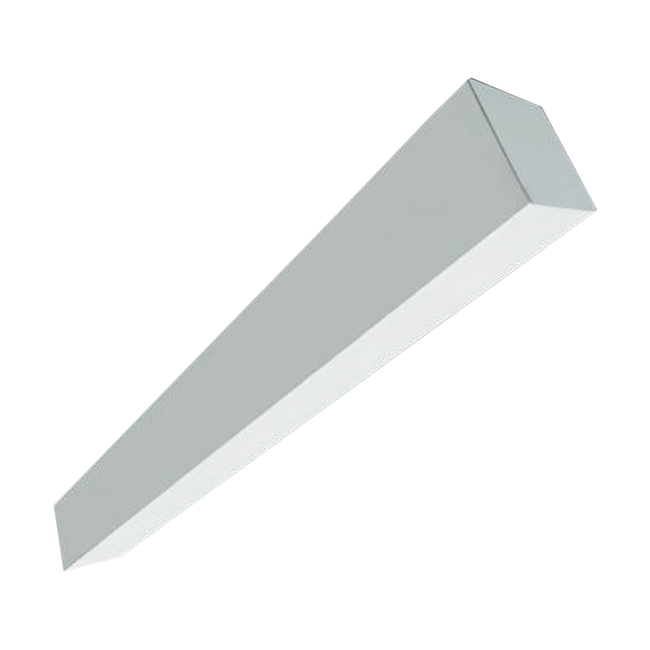

An architecturally appealing linear surface or suspended mount LED only 4″ wide. Featuring high quality LED components from leading manufacturers and available in 3 power settings (low, med and high). Snap-in extruded diffuser is frosted LED formulation for maximum transmission and excellent LED diffusion. See spec sheet for additional lens options.
Key features
- Custom extruded diffuser for high light transmission and excellent LED diffusion
- Precision fabricated steel housings as an economic alternative to extruded aluminum
- Available in 2’, 3’, 4’, 6’ and 8’ lengths (nominal)
- U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- Universal voltage 120-277V standard
- 0-10V or Lutron dimming options
- 5-year warranty (part replacement only)
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
44L48XLFA30 | 4′ | Low | 3000K | 23.8W | 2,635 | 111 | .ies · Report (PDF) |
44L48XMFA30 | 4′ | Medium | 3000K | 32.6W | 3,444 | 106 | .ies · Report (PDF) |
44L48XHFA30 | 4′ | High | 3000K | 51.2W | 4,961 | 97 | .ies · Report (PDF) |
Typical applications
Commercial application, Residential setting
