BLP Series

Recessed back-lit panel with adjustable output and CCT, in 1×4, 2×2 and 2×4 sizes with 0-10V dimming and up to 148 lm/W.

Download spec sheet (PDF) Request a quote

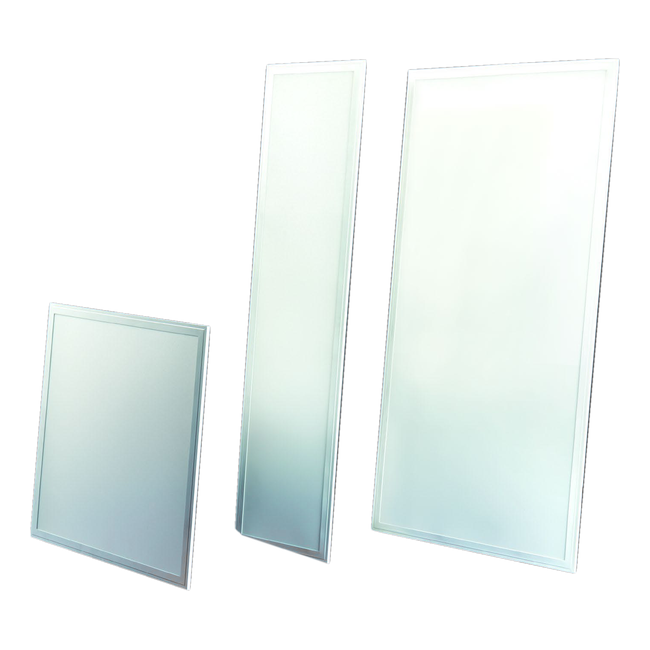

BLP Series recessed back-lit panels in 2×2, 1×4 and 2×4 sizes

Overview

The BLP series is a power and color selectable, commercial grade recessed back-lit panel with high visual comfort. It is designed for indoor applications where low glare, high quality and ease of installation are required. Lumen output (three levels) and CCT are set in the field with switches on the driver.

Key features

Extruded aluminum frame with precision laser-welded corners and satin white powder coat finish
Precise optical lens over each individual LED for even diffusion and consistent surface illumination, with no risk of yellowing over the product lifetime
Available in 1×4, 2×2 and 2×4 sizes, plus a 2×4 high output version
Adjustable lumen output (3 levels) via slide switch on the driver
Adjustable CCT via dipswitch on the driver; preset to 5000K
Universal voltage 120-277V standard
0-10V dimming standard
80+ CRI
U.L./C.U.L. Certified for dry/damp locations, IC rated
Design Lights Consortium® (DLC) qualified luminaire
Operating temperature range -20°C/-4°F to 40°C/104°F
Recessed mount in T-bar ceilings; optional accessories for gypsum ceilings, surface mounting or suspending
Integral earthquake clips for additional support
5-year warranty – part replacement only

Configuration

Catalog number	Nominal size	Selectable wattage	Selectable CCT	Lumens	lm/W
`BLP14-A-D`	1′ × 4′	35W	3500K	3,950	113
`BLP14-A-D`	1′ × 4′	35W	4000K	4,200	120
`BLP14-A-D`	1′ × 4′	35W	5000K	4,000	114
`BLP14-A-D`	1′ × 4′	30W	3500K	3,450	115
`BLP14-A-D`	1′ × 4′	30W	4000K	3,700	123
`BLP14-A-D`	1′ × 4′	30W	5000K	3,500	117
`BLP14-A-D`	1′ × 4′	20W	3500K	2,400	120
`BLP14-A-D`	1′ × 4′	20W	4000K	2,600	130
`BLP14-A-D`	1′ × 4′	20W	5000K	2,450	123
`BLP22-A-D`	2′ × 2′	35W	3500K	3,950	113
`BLP22-A-D`	2′ × 2′	35W	4000K	4,200	120
`BLP22-A-D`	2′ × 2′	35W	5000K	4,000	114
`BLP22-A-D`	2′ × 2′	30W	3500K	3,450	115
`BLP22-A-D`	2′ × 2′	30W	4000K	3,700	123
`BLP22-A-D`	2′ × 2′	30W	5000K	3,500	117
`BLP22-A-D`	2′ × 2′	20W	3500K	2,400	120
`BLP22-A-D`	2′ × 2′	20W	4000K	2,600	130
`BLP22-A-D`	2′ × 2′	20W	5000K	2,450	123
`BLP24-A-D`	2′ × 4′	45W	3000K	5,300	118
`BLP24-A-D`	2′ × 4′	45W	4000K	5,650	125
`BLP24-A-D`	2′ × 4′	45W	5000K	5,350	118
`BLP24-A-D`	2′ × 4′	35W	3000K	4,200	120
`BLP24-A-D`	2′ × 4′	35W	4000K	4,550	130
`BLP24-A-D`	2′ × 4′	35W	5000K	4,235	121
`BLP24-A-D`	2′ × 4′	30W	3000K	3,850	128
`BLP24-A-D`	2′ × 4′	30W	4000K	4,200	140
`BLP24-A-D`	2′ × 4′	30W	5000K	3,900	130
`BLP24H-A-D`	2′ × 4′ High Output	60W	3000K	7,900	132
`BLP24H-A-D`	2′ × 4′ High Output	60W	4000K	8,200	137
`BLP24H-A-D`	2′ × 4′ High Output	60W	5000K	8,000	134
`BLP24H-A-D`	2′ × 4′ High Output	50W	3000K	6,700	135
`BLP24H-A-D`	2′ × 4′ High Output	50W	4000K	7,000	140
`BLP24H-A-D`	2′ × 4′ High Output	50W	5000K	6,850	137
`BLP24H-A-D`	2′ × 4′ High Output	40W	3000K	5,500	138
`BLP24H-A-D`	2′ × 4′ High Output	40W	4000K	5,920	148
`BLP24H-A-D`	2′ × 4′ High Output	40W	5000K	5,760	144

All models: 120-277V input, 0-10V dimming, CRI >80. Size codes: 14A-D 1×4, 22A-D 2×2, 24A-D 2×4, 24HA-D 2×4 high output. Options: EM5 5W emergency pack (>90 min., >500 lumens), EM12 12W emergency pack (>90 min., >1,200 lumens). Accessories: FK14, FK22, FK24 flange kits for gypsum ceilings; BLP-SK14, BLP-SK22, BLP-SK24 surface mount kits; BLP-ACKIT cable-hanging kit. Ordering example: BLP22A-D.

Dimensions

Catalog number	Nominal size	Length	Width	Height
`BLP14-A-D`	1′ × 4′	47.80″	11.81″	1.47″
`BLP22-A-D`	2′ × 2′	23.74″	23.74″	1.47″
`BLP24-A-D`	2′ × 4′	47.71″	23.74″	1.47″
`BLP24H-A-D`	2′ × 4′ High Output	47.71″	23.74″	1.37″

Photometric files & test reports

Model	Size	Power	CCT	Input watts	Lumens	lm/W	Download
`BLP-14AD-35W-35K`	1×4	35W	3500K	35.0W	4,018	115	.ies · Report (PDF)
`BLP-22AD-35W-35K`	2×2	35W	3500K	34.4W	3,924	114	.ies · Report (PDF)
`BLP-24AD-45W-35K`	2×4	45W	3500K	44.0W	5,476	124	.ies · Report (PDF)

Typical applications

Indoor commercial spaces with T-bar grid ceilings where low glare, high visual comfort and ease of installation are required
