Overview

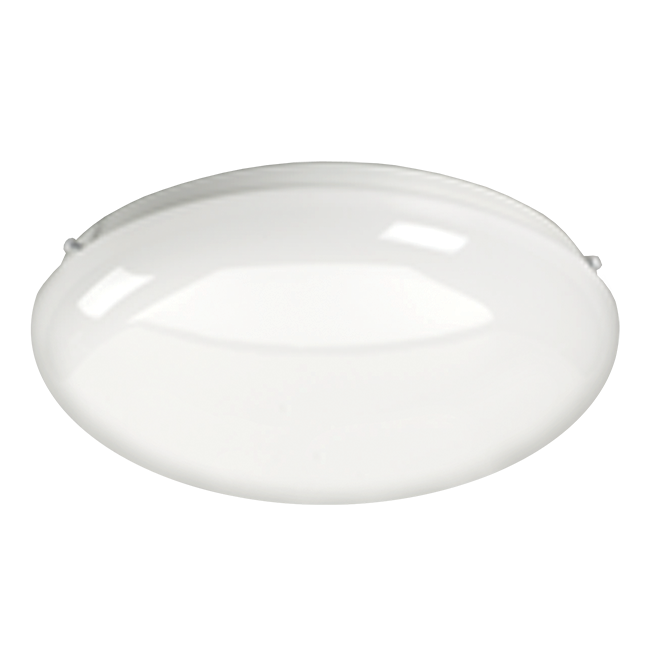

A functional surface mounted luminescent dome unit. Great for hallways, closets, kitchen areas or dorm rooms. Optional high-frequency motion sensor (completely enclosed) available on 14″ models.
Key features
- Available in 11" and 14" sizes featuring field adjustable output power (13.5-20.5W) and CCT (3000k-5000k).
- One-piece die-formed cold rolled steel housing.
- Low profile, frosted acrylic dome-style diffuser.
- Optional high-frequency motion sensor (completely enclosed) available on 14” models.
- Universal voltage 120-277V standard.
- 0-10V dimming to 10% standard.
- U.L. Certified and Union made in the USA.
Photometric files & test reports
| Model | Size | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
CDL11A-40-L | 11″ | Low | 4000K | 13.5W | 1,832 | 136 | .ies · Report (PDF) |
CDL11A-40-M | 11″ | Medium | 4000K | 17.0W | 2,300 | 135 | .ies · Report (PDF) |
CDL11A-40-H | 11″ | High | 4000K | 20.5W | 2,684 | 131 | .ies · Report (PDF) |
Typical applications
Hallways, Closets, Kitchen areas, Dorm rooms
