Overview

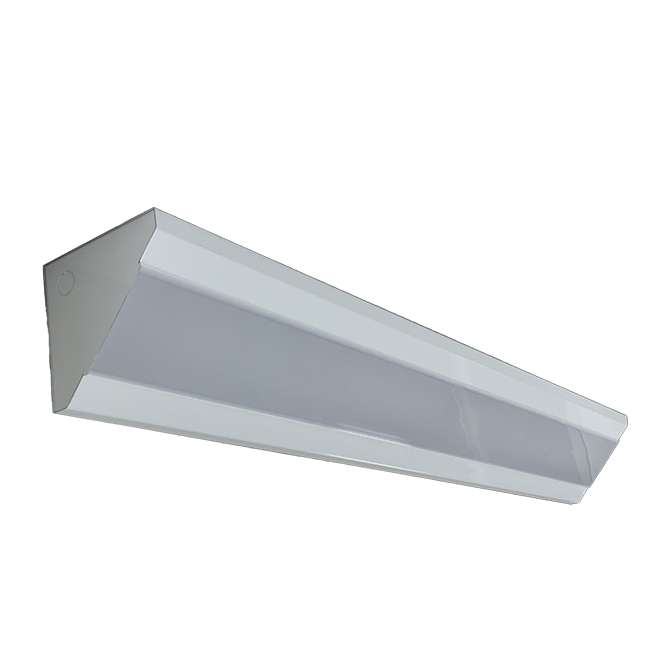

Attractive and versatile LED corner/wall or ceiling mount luminaire offers several lumen packages – low, medium, and high, to provide diffused downlight for a balanced appearance. Designed for spaces needing adequate illumination with a limited ceiling height. Perfect for soffits, coves, valances, or backlighting.
Key features
- Durable steel body manufactured from code gauge steel
- Custom frosted polycarbonate extruded diffuser offers high light transmission with excellent LED diffusion and impact resistance (remove without tools)
- Available in 2’ and 4’ lengths (nominal)
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- Wall/corner or ceiling mount
- Universal voltage 120-277V standard
- Custom driver tuning available for specific lumen requirements
- 0-10V dimming to 10% standard
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
CNLF-CNOS48L40 | 4′ | Low | 4000K | 24.2W | 2,635 | 109 | .ies · Report (PDF) |
CNLF-CNOS48M40 | 4′ | Medium | 4000K | 33.4W | 3,444 | 103 | .ies · Report (PDF) |
CNLF-CNOS48H40 | 4′ | High | 4000K | 51.3W | 4,961 | 97 | .ies · Report (PDF) |
Typical applications
soffits, coves, valances, backlighting, commercial applications, residential settings
