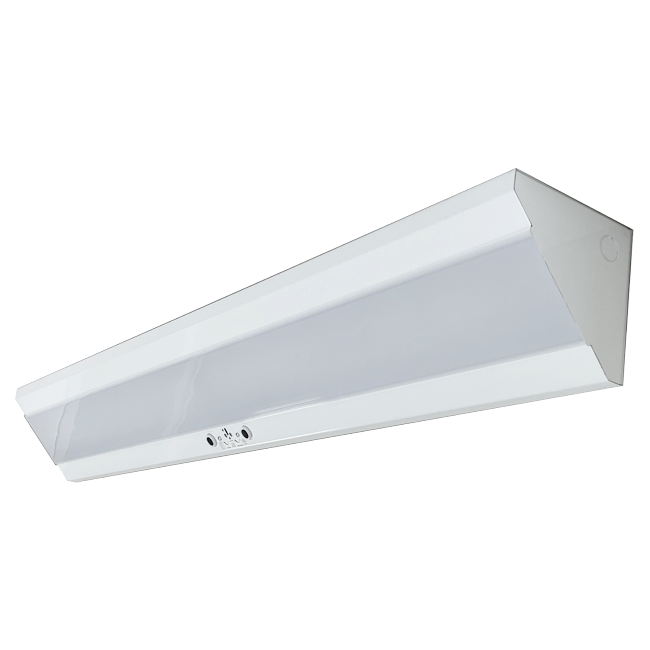

Overview
The CNOS corner mount series is part of our expanding Occu-Smart® product line. Equipped with an ultrasonic motion sensor, featuring bi-level operation with adjustable standby light levels, time delay, and sensitivity for maximum energy savings. Bi-level fixtures operate at a low standby light level, offering energy savings, safety, and security.
Key features
- High-quality LED arrays from leading component manufacturers
- Bi-level operation with adjustable standby light levels
- Ultrasonic motion sensor with adjustable standby
- Toolless entry and simple removal of board gear tray
- High impact frosted Polycarbonate diffuser
- 5 minute walk test mode
- Standby levels 10, 25, or 50%
- Time delay 1, 5, or 20 minutes
- Meets Buy America Act (ARRA)
- RoHS Compliant
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
CNLF-CNOS48L40 | 4′ | Low | 4000K | 24.2W | 2,635 | 109 | .ies · Report (PDF) |
CNLF-CNOS48M40 | 4′ | Medium | 4000K | 33.4W | 3,444 | 103 | .ies · Report (PDF) |
CNLF-CNOS48H40 | 4′ | High | 4000K | 51.3W | 4,961 | 97 | .ies · Report (PDF) |
Typical applications
stairwells, corridors, restrooms, commercial application, residential setting
