Overview

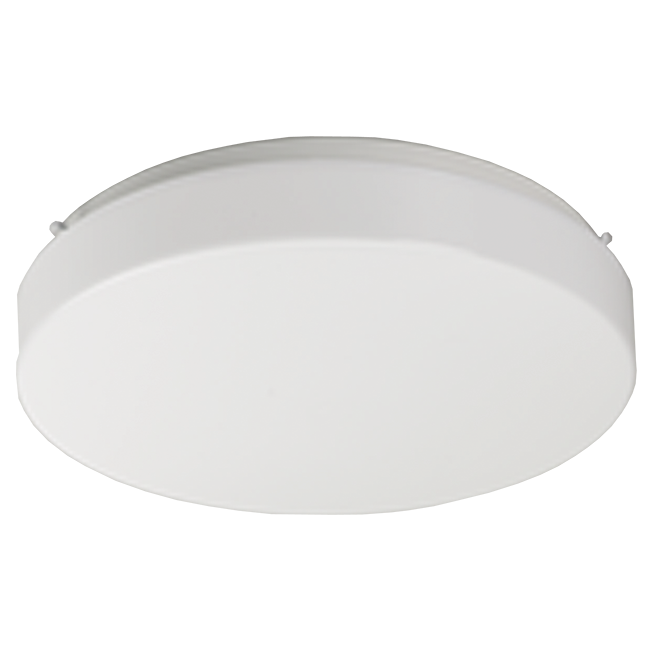

A functional surface-mounted luminescent drum unit. Great for hallways, closets, kitchen areas, or dorm rooms. Optional high-frequency motion sensor (completely enclosed) available on 14″ models.
Key features
- One-piece die-formed cold rolled steel housing
- Low profile, acrylic drum-style diffuser
- Optional high-frequency motion sensor (completely enclosed) available on 14” models
- Available in 11’’ and 14’’ sizes
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified and Union made in the USA
- Meets ADA requirements for wall mounting
- Universal voltage 120-277V standard
- Field adjustable CCT (3000k-5000k) and Lumen output
- 0-10V dimming to 10% standard
Photometric files & test reports
| Model | Size | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
CRL11A-40-L | 11″ | Low | 4000K | 13.5W | 1,832 | 136 | .ies · Report (PDF) |
CRL11A-40-M | 11″ | Medium | 4000K | 17.0W | 2,300 | 135 | .ies · Report (PDF) |
CRL11A-40-H | 11″ | High | 4000K | 20.5W | 2,684 | 131 | .ies · Report (PDF) |
Typical applications
hallways, closets, kitchen areas, dorm rooms
