Overview

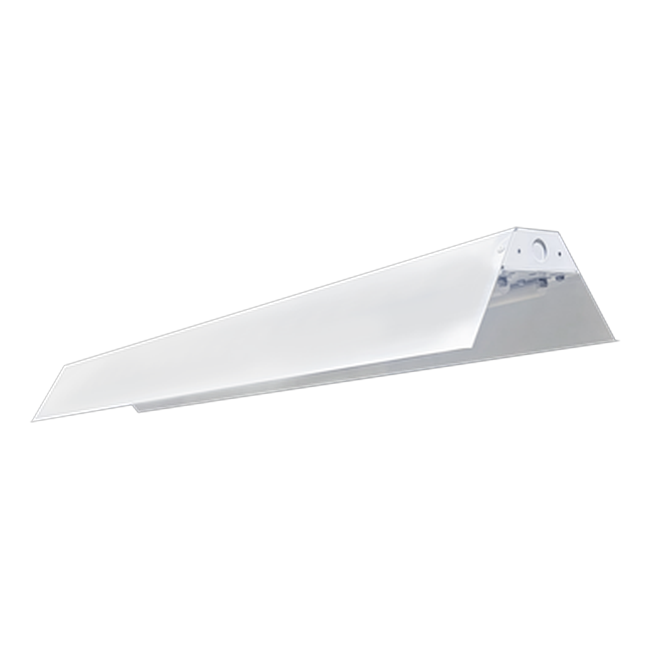

Designed for mission-critical environments, the Lamar LED DCL delivers powerful, uniform illumination tailored to data center applications. Its durable aluminum construction and IP55-rated design provide dust resistance and thermal performance, while multiple sensor and control options enable energy-efficient operation without compromising reliability.
Key features
- Durable aluminum body for maximum thermal management
- 50°C maximum ambient operating temperature (up to 7,080 lm on 4′ and 14,160 lm on 8′ units)
- Available in 4′ and 8′ nominal sizes
- Low, medium, high and very high power options, up to 166 lm/W
- Custom driver tuning available for specific lumen requirements
- Universal voltage 120-277V standard
- 0-10V dimming to 1% standard; 0-10V dim to dark, Lutron EcoSystem Hi-lume, 2-wire phase-cut, Bluetooth and Bluetooth mesh options
- Standalone PIR aisle sensor available
- 80 or 90 CRI, 3000K to 5000K
- IP55 rated for dust
- Surface or suspended mount, individually or in continuous rows
- All electrical components UL Certified; Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- 5-year standard warranty; 10-year warranty available
Configuration
| Size | Nominal length | Power | Lumens | Watts | lm/W |
|---|---|---|---|---|---|
48 | 4′ | Low | 3,540 | 22W | 161 |
48 | 4′ | Medium | 5,536 | 34.3W | 161 |
48 | 4′ | High | 7,080 | 42.6W | 166 |
48 | 4′ | Very High | 13,612 | 82W | 166 |
96 | 8′ | Low | 7,080 | 44W | 161 |
96 | 8′ | Medium | 11,018 | 68.6W | 161 |
96 | 8′ | High | 14,160 | 85.2W | 166 |
96 | 8′ | Very High | 27,303 | 164W | 166 |
Performance based on 80 CRI at 5000K; the multiplier for 4000K is 0.99757. CRI/CCT: 30, 35, 40, 45 (80 CRI) or 930, 935, 940, 950 (90 CRI). Driver: D 0-10V dimming to 1%, DTD 0-10V dim to dark, LDH Lutron EcoSystem Hi-lume, MX1/MX2 2-wire 120V/277V phase-cut, BT Bluetooth programming, BTM Bluetooth mesh. Controls: PIR passive infrared sensor. Options: EM, EMB (BABA compliant) and EMH emergency packs, 2C 2-circuit wiring (High or Very High only). Accessories: VH V-hanger, AL aligner clips (standard on 8′). Ordering example: DCL-48-M-8030-DTD-PIR-EM. Consult factory for additional options.
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
DCL48L-50 | 4′ | Low | 5000K | 21.2W | 3,548 | 167 | .ies · Report (PDF) |
DCL48M-50 | 4′ | Medium | 5000K | 34.3W | 5,536 | 161 | .ies · Report (PDF) |
DCL48H-50 | 4′ | High | 5000K | 44.5W | 7,080 | 159 | .ies · Report (PDF) |
DCL48VH-50 | 4′ | Very High | 5000K | 81.8W | 13,612 | 166 | .ies · Report (PDF) |
Typical applications
Data centers, mission-critical facilities, server rooms, aisles
