Overview

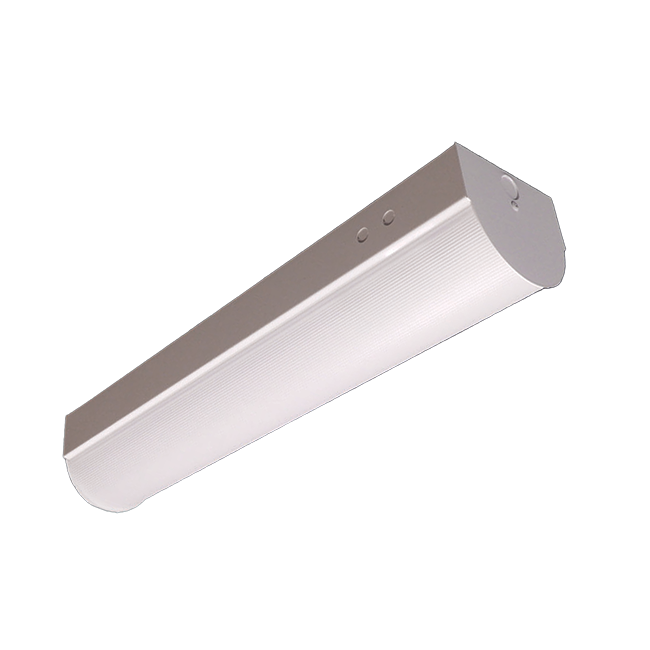

Ideal for corridors, laundry rooms, restrooms, and a variety of other areas. Offered in 2′, 4′, and 8’ lengths and 3 output levels (Low, Med, or High). Designed to be a long-lasting, low-maintenance luminaire.
Key features
- Housings are die-formed of code gauge steel for long-term dependable service
- Knockouts are provided for convenient mounting with recessed or surface power feeds
- Available in 2’, 4’ and 8’ lengths (nominal)
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- Stem, chain, cable or surface mount on ceiling or wall
- Universal voltage 120-277V standard
- Custom driver tuning available for specific lumen requirements
- 0-10V or Lutron dimming optional
- 5 years warranty – part replacement only
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
DLLR48LRA40 | 4′ | Low | 4000K | 22.9W | 2,716 | 118 | .ies · Report (PDF) |
DLLR48MRA40 | 4′ | Medium | 4000K | 31.1W | 3,462 | 111 | .ies · Report (PDF) |
DLLR48HRA40 | 4′ | High | 4000K | 52.6W | 5,920 | 112 | .ies · Report (PDF) |
Typical applications
Corridors, Laundry rooms, Restrooms, Commercial applications, Residential settings
