Overview

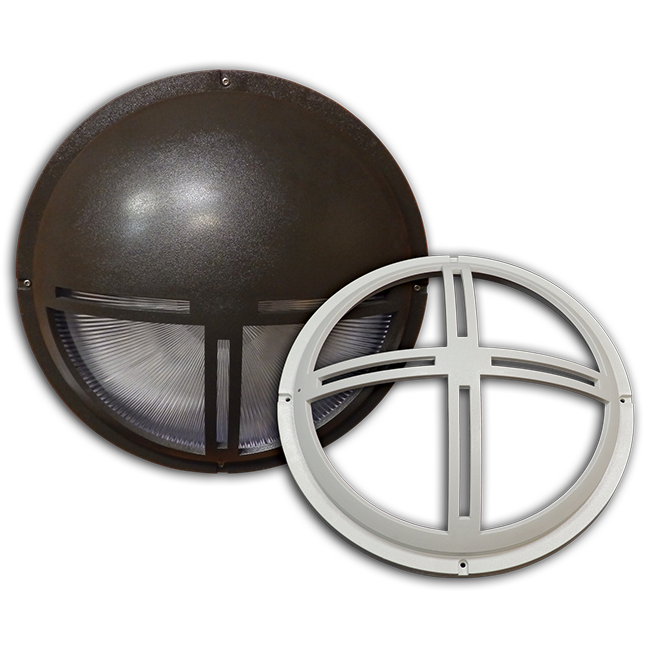

Features die-cast aluminum housings in two finishes and two diffuser options all 1/8″ injection molded polycarbonate and three guard options. All components are completely gasketed. High-frequency motion sensor (completely enclosed) available in either adjustable standby or on/off option. Featuring field adjustable output power (13.5-20.5W) and CCT (3000K-5000K).
Key features
- Die cast marine grade aluminum housing
- Front trim and back housing available in Black or White
- One-piece injection-molded guard with integral weep hole made from UV-stabilized polycarbonate
- Tamper-proof TORX™ T-15 pin-in-head stainless steel screws
- 0.125” thick injection-molded lens with radial prisms (Frost or Translucent White)
- High-frequency motion sensor available with adjustable standby or on/off option
- Field adjustable output power (13.5-20.5W) and CCT (3000K-5000K)
- Surface mount on ceiling or wall
- UL Certified for wet locations
- Union made in the USA
- 5 year warranty
Photometric files & test reports
| Model | Lens | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
GNLXAFRXOG-L40 | Frosted ribbed | Low | 4000K | 13.5W | 1,380 | 102 | .ies · Report (PDF) |
GNLXAFRXOG-M40 | Frosted ribbed | Medium | 4000K | 17.0W | 1,730 | 102 | .ies · Report (PDF) |
GNLXAFRXOG-H40 | Frosted ribbed | High | 4000K | 20.5W | 2,182 | 106 | .ies · Report (PDF) |
GNLXATWXOG-L40 | Translucent White | Low | 4000K | 13.5W | 832 | 62 | .ies · Report (PDF) |
GNLXATWXOG-M40 | Translucent White | Medium | 4000K | 17.0W | 1,050 | 62 | .ies · Report (PDF) |
GNLXATWXOG-H40 | Translucent White | High | 4000K | 20.5W | 1,241 | 61 | .ies · Report (PDF) |
Typical applications
walkways, parking structures, common areas
