Overview

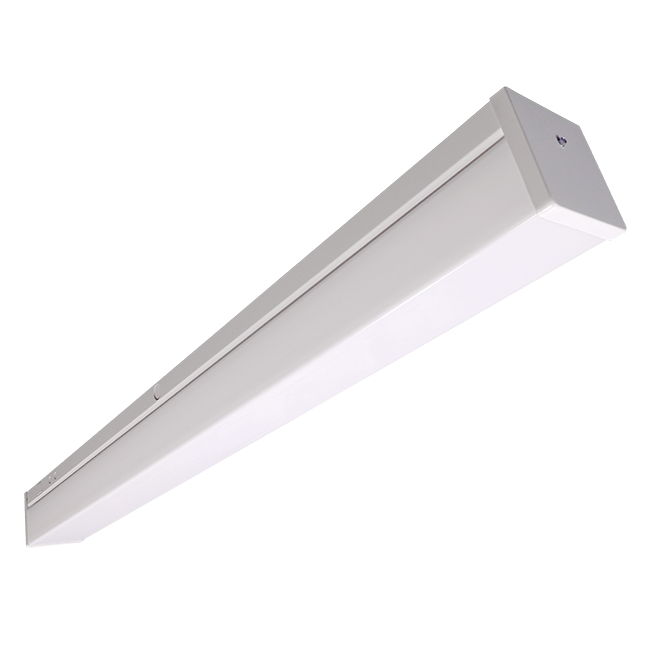

The HWL Series is a decorative all-purpose LED suitable for wall, ceiling, or pendant mount. It is available in several lumen packages – low, medium, and high, to meet a variety of applications. The fixture now features a frosted LED formula diffuser to boost efficiency.
Key features
- One piece extruded frosted acrylic diffuser (LED Formula)
- Durable steel body formed from cold-rolled steel
- Ends are die-formed for added strength
- Available in 2’ and 4’ lengths (nominal)
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA)
- 0-10V dimming to 10% standard
- 5 years warranty – part replacement only
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
HWL48LFA40 | 4′ | Low | 4000K | 23.4W | 2,754 | 118 | .ies · Report (PDF) |
HWL48MFA40 | 4′ | Medium | 4000K | 34.5W | 3,794 | 110 | .ies · Report (PDF) |
HWL48HFA40 | 4′ | High | 4000K | 46.2W | 4,768 | 103 | .ies · Report (PDF) |
Typical applications
Residential, Commercial, Industrial, Office, Healthcare, Schools
