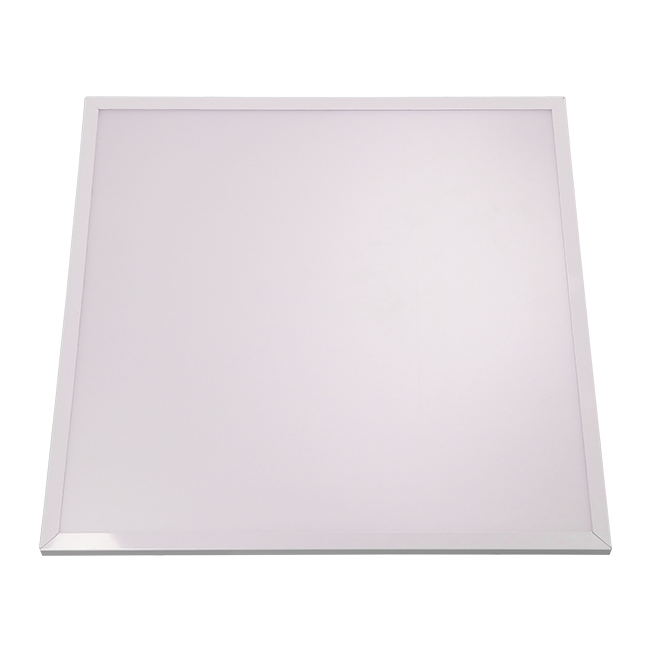

Overview
Powered by state-of-the-art LED technology to ensure even illumination across the panel while highly efficient acrylic diffuser provides maximum light output. Free from the “hot” edges commonly associated with today’s flat-panel products. Suitable for grid ceiling installations, surface box kit available.
Key features
- Durable steel body
- Custom designed LED system with unique optics to ensure perfect, even illumination
- Specially designed acrylic diffuser provides maximum light output and efficacy
- U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- 0-10V or Lutron dimming optional
- 5 years – part replacement only warranty
Photometric files & test reports
| Model | Size | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|
LWT2239L35 | 2×2 | 3500K | 31.3W | 3,832 | 122 | .ies · Report (PDF) |
LWT2239L40 | 2×2 | 4000K | 31.3W | 3,961 | 126 | .ies · Report (PDF) |
LWT2444L35 | 2×4 | 3500K | 34.8W | 4,257 | 122 | .ies · Report (PDF) |
LWT2444L40 | 2×4 | 4000K | 34.8W | 4,398 | 126 | .ies · Report (PDF) |
Typical applications
offices, hospitals, schools, grid ceiling installations
