Overview

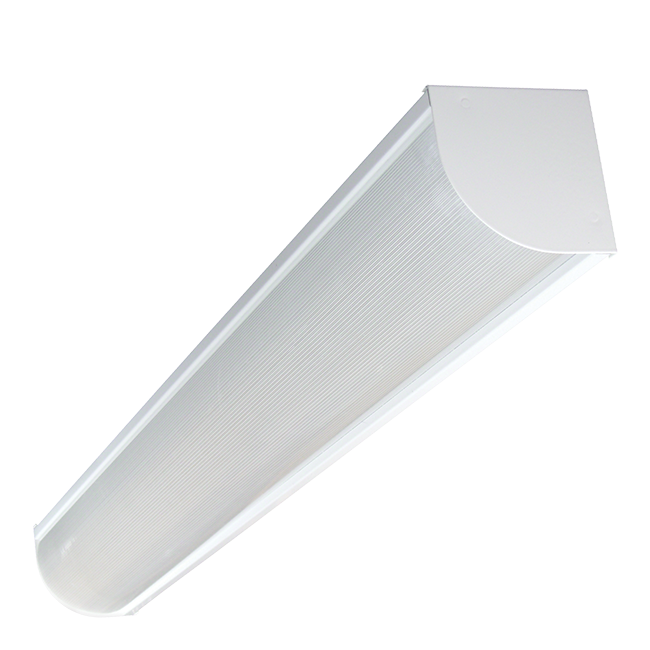

Attractive and versatile LED wall/corner mount luminaire offers several lumen packages – low, medium and high, to provide diffused downlight for a balanced appearance. All fixtures are U.L. Certified and Union made in the USA. Designed for spaces needing adequate illumination with a limited ceiling height.
Key features
- Wall or corner mount as individual units or continuous rows.
- Designed for spaces needing adequate illumination with a limited ceiling height.
- Perfect for soffits, coves, valances, or backlighting.
- Curved frosted linear ribbed impact-resistant polycarbonate diffuser.
- Durable steel body manufactured from code gauge steel
- Frosted polycarbonate linear diffuser for maximum downlight (remove without tools)
- Linear refractive pattern for even illumination
- Universal voltage 120-277V standard
- 0-10V or Lutron dimming optional
- U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
MCNL48LFA30 | 4′ | Low | 3000K | 24.3W | 2,479 | 102 | .ies · Report (PDF) |
MCNL48LFA35 | 4′ | Low | 3500K | 24.3W | 2,531 | 104 | .ies · Report (PDF) |
MCNL48LFA40 | 4′ | Low | 4000K | 24.3W | 2,609 | 107 | .ies · Report (PDF) |
MCNL48LFA50 | 4′ | Low | 5000K | 24.3W | 2,774 | 114 | .ies · Report (PDF) |
MCNL48MFA30 | 4′ | Medium | 3000K | 36W | 3,408 | 95 | .ies · Report (PDF) |
MCNL48MFA35 | 4′ | Medium | 3500K | 36W | 3,480 | 97 | .ies · Report (PDF) |
MCNL48MFA40 | 4′ | Medium | 4000K | 36W | 3,587 | 100 | .ies · Report (PDF) |
MCNL48MFA50 | 4′ | Medium | 5000K | 36W | 3,817 | 106 | .ies · Report (PDF) |
MCNL48HFA30 | 4′ | High | 3000K | 50W | 4,234 | 85 | .ies · Report (PDF) |
MCNL48HFA35 | 4′ | High | 3500K | 50W | 4,323 | 86 | .ies · Report (PDF) |
MCNL48HFA40 | 4′ | High | 4000K | 50W | 4,457 | 89 | .ies · Report (PDF) |
MCNL48HFA50 | 4′ | High | 5000K | 50W | 5,134 | 103 | .ies · Report (PDF) |
Typical applications
soffits, coves, valances, backlighting, wall mount, corner mount
