Overview

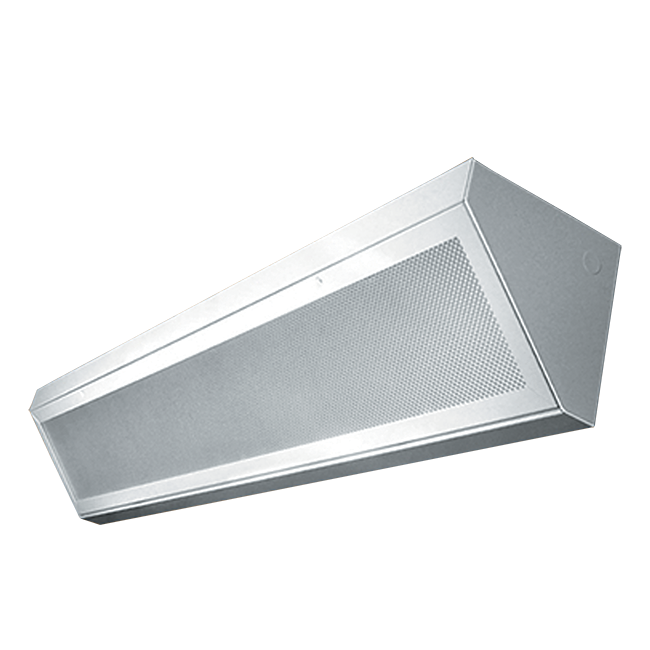

Mini corner mount LED luminaire featuring a hinged door with lens. Ideal for residential, commercial or institutional applications. Constructed with die formed code gauge cold rolled steel bodies for strength and uniformity.
Key features
- Available in 2′ or 4′ lengths
- Low, Medium, or High lumen output options
- Optional tamperproof hardware
- Multiple dimming options (0-10V, Lutron, Phase Cut)
- Frosted LED formulation acrylic lens
- Die formed code gauge cold rolled steel bodies
- Hinged flush white steel door
- U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
MCRL48L40 | 4′ | Low | 4000K | 24W | 2,365 | 99 | .ies · Report (PDF) |
MCRL48M40 | 4′ | Medium | 4000K | 35.4W | 3,260 | 92 | .ies · Report (PDF) |
MCRL48H40 | 4′ | High | 4000K | 47.3W | 4,095 | 87 | .ies · Report (PDF) |
Typical applications
Residential, commercial, industrial, Wall/corner mount
