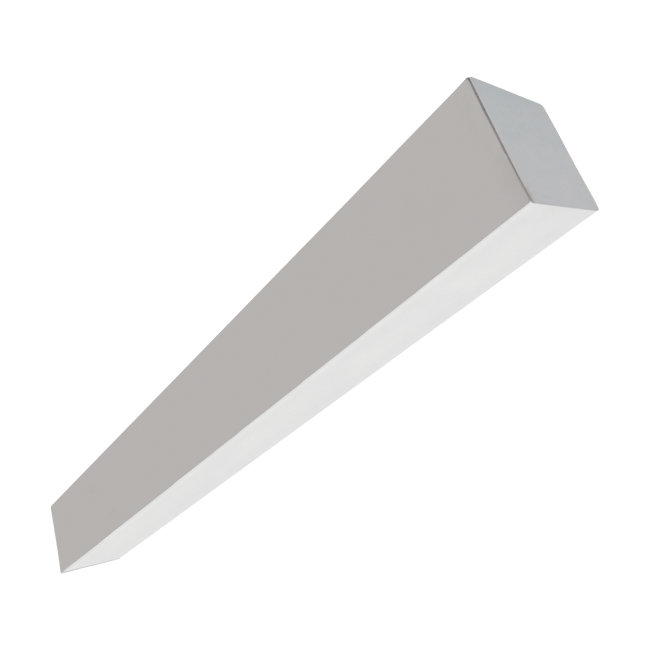

Overview
Featuring high quality LED components from leading manufacturers and available in 3 power settings (low, med and high). Snap-in extruded diffuser is frosted LED formulation for maximum transmission and excellent LED diffusion. See spec sheet for additional lens options.
Key features
- Custom extruded diffuser offers high light transmission with excellent LED diffusion
- Precision fabricated steel construction is an economic alternative to extruded aluminum
- Optional Crossblade Louver available
- Available in 2’, 3’, 4’, 6’ and 8’ lengths (nominal)
- U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- 0-10V or Lutron dimming options
- 5 year warranty on part replacement
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
NLSD48LB40 | 4′ | Low | 4000K | 24.2W | 2,455 | 101 | .ies · Report (PDF) |
NLSD48MB40 | 4′ | Medium | 4000K | 33.0W | 3,210 | 97 | .ies · Report (PDF) |
NLSD48HB40 | 4′ | High | 4000K | 51.6W | 4,614 | 89 | .ies · Report (PDF) |
Typical applications
Commercial, Residential, Architectural environments
