Overview
Featuring high quality LED components from leading manufacturers and available in 3 power settings (low, med and high). Snap-in extruded diffuser is frosted LED formulation for maximum transmission and excellent LED diffusion. See spec sheet for additional lens options.
Key features

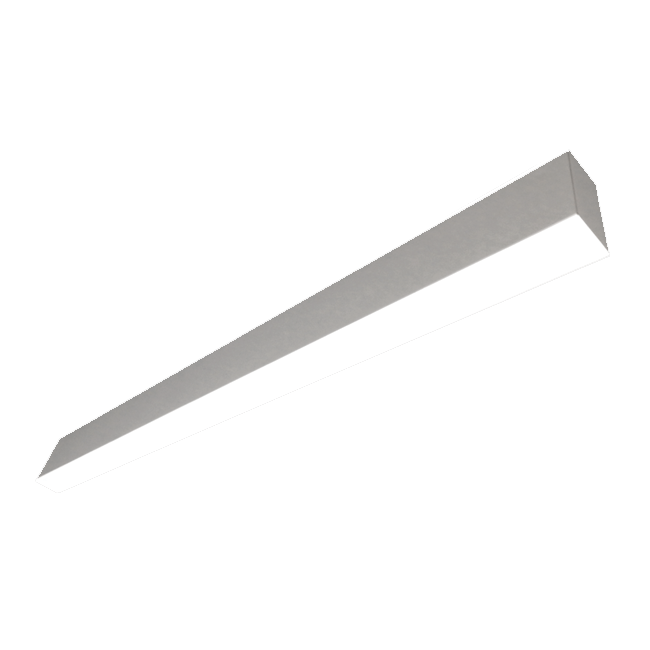

- Narrow linear cable hung LED up/down light only 2.25″ wide
- 3 power settings (low, med and high)
- Custom extruded diffuser offers over 85% light transmission
- Precision fabricated steel construction
- U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- 0-10V or Lutron dimming optional
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
NLSDI48LTB40 | 4′ | Low | 4000K | 47.2W | 4,924 | 104 | .ies · Report (PDF) |
NLSDI48MTB40 | 4′ | Medium | 4000K | 64.2W | 6,451 | 101 | .ies · Report (PDF) |
NLSDI48HTB40 | 4′ | High | 4000K | 100.3W | 9,256 | 92 | .ies · Report (PDF) |
Typical applications
Commercial, Residential
