Overview

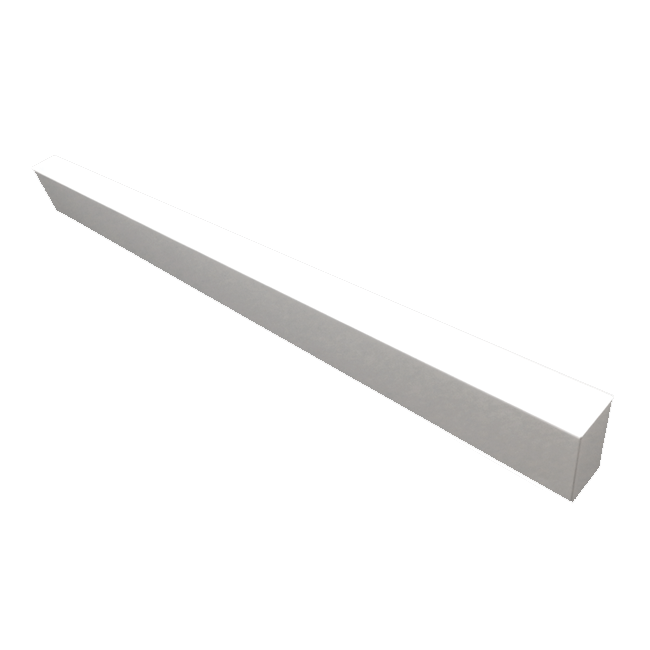

An architecturally appealing narrow linear Indirect LED only 2.25″ wide. Featuring high quality LED components from leading manufacturers and available in 3 power settings (low, med and high). Snap-in extruded diffuser is frosted LED formulation for maximum transmission and excellent LED diffusion.
Key features
- Custom extruded diffuser offers high light transmission with excellent LED diffusion
- Precision fabricated steel housings are an economic alternative to extruded aluminum
- Available in 2’, 3’, 4’, 6’ and 8’ lengths (nominal)
- U.L. listed or recognized electrical components
- U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
NLSI48L40 | 4′ | Low | 4000K | 24.2W | 2,455 | 101 | .ies · Report (PDF) |
NLSI48M40 | 4′ | Medium | 4000K | 33.0W | 3,210 | 97 | .ies · Report (PDF) |
NLSI48H40 | 4′ | High | 4000K | 51.6W | 4,614 | 89 | .ies · Report (PDF) |
Typical applications
Architectural, Commercial, Residential
