Overview

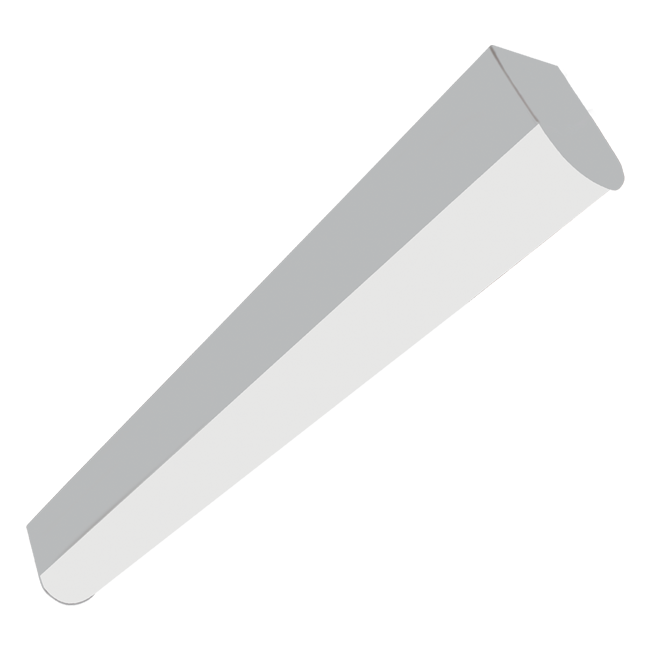

An architecturally appealing narrow linear surface LED only 2.25″ wide. Featuring high quality LED components from leading manufacturers and available in 3 power settings (low, med and high). Custom soft round extruded diffuser offers high light transmission with excellent LED diffusion.
Key features
- Precision fabricated steel construction is an economic alternative to extruded aluminum.
- Custom extruded diffuser offers high light transmission with excellent LED diffusion
- Precision fabricated steel housings are an economic alternative to extruded aluminum
- Available in 2’, 3’, 4’, 6’ and 8’ lengths (nominal)
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- Surface or cable mount (specify “AC” when ordering)
- Universal voltage 120-277V standard
- Custom driver tuning available for specific lumen requirements
- 0-10V or Lutron dimming
- 5 years – part replacement only warranty
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
NLSR48LRA40 | 4′ | Low | 4000K | 23.9W | 2,843 | 119 | .ies · Report (PDF) |
NLSR48MRA40 | 4′ | Medium | 4000K | 33.1W | 3,717 | 112 | .ies · Report (PDF) |
NLSR48HRA40 | 4′ | High | 4000K | 50.8W | 5,343 | 105 | .ies · Report (PDF) |
Typical applications
Architectural lighting, Narrow linear surface LED, Commercial application, Residential setting
