Overview

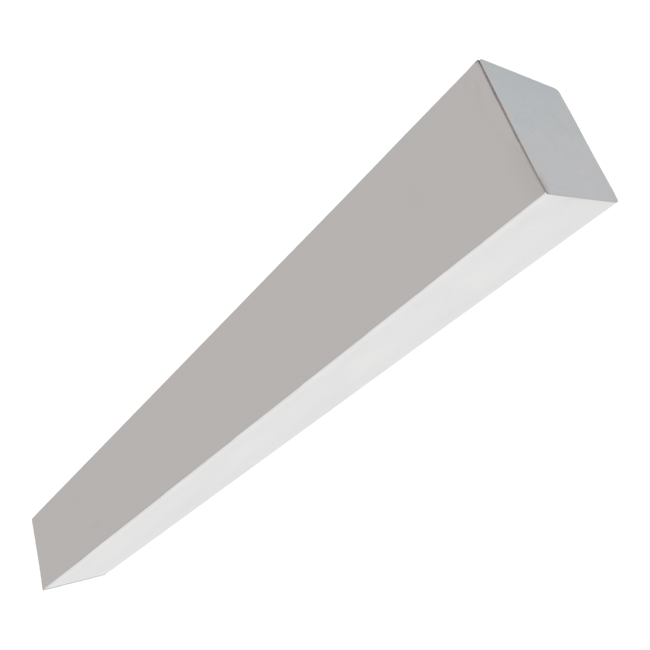

An architecturally appealing narrow linear wall mounted LED only 2.25″ wide. Featuring high quality LED components from leading manufacturers and available in 3 power settings (low, med and high).
Key features
- Custom extruded diffuser offers high light transmission with excellent LED diffusion and exposed linear edges that provide a unique glow.
- Precision fabricated steel construction is an economic alternative to extruded aluminum.
- Available in 2’, 3′, 4’, 6’ and 8’ lengths (nominal).
- All fixtures are U.L. Certified and Union made in the USA.
- Meets Buy America Act (BAA), BABA Compliant.
- Universal voltage 120-277V standard.
- 0-10V or Lutron dimming optional.
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
NLSD48LB40 | 4′ | Low | 4000K | 24.2W | 2,455 | 101 | .ies · Report (PDF) |
NLSD48MB40 | 4′ | Medium | 4000K | 33.0W | 3,210 | 97 | .ies · Report (PDF) |
NLSD48HB40 | 4′ | High | 4000K | 51.6W | 4,614 | 89 | .ies · Report (PDF) |
Typical applications
Commercial, Residential
