Overview

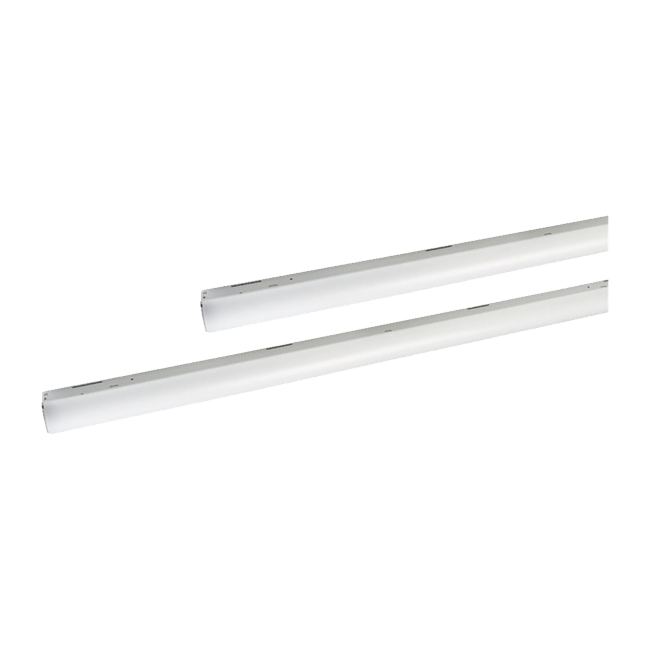

The S-LED series is an all-purpose LED strip luminaire for a wide range of retail, commercial and residential applications. It is available in 2′, 4′ and 8′ nominal lengths, each with field-adjustable CCT (3500K, 4000K or 5000K) and field-adjustable power, and the luminaire is suitable for installation within a clothes closet storage space.
Key features
- Durable steel body die-formed from code gauge cold rolled steel
- One piece extruded frosted PMMA diffuser
- Post painted powder coat finish
- Available in 2′, 4′ and 8′ lengths (nominal)
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified
- Surface or suspended mount (surface mounting brackets included)
- Universal voltage 120-277V standard
- Field-adjustable CCT (3500K-5000K) and lumen output (power)
- 0-10V dimming standard
- 80+ CRI
- 5-year warranty (parts replacement only)
Configuration
| Size | Nominal length | Selectable power | Dimensions (L × W × H) |
|---|---|---|---|
2-25PS | 2′ | 15, 20 or 25W | 22.20″ × 2.36″ × 2.65″ |
4-44PS | 4′ | 18, 28 or 44W | 47.32″ × 2.36″ × 2.65″ |
8-90PS | 8′ | 54, 75 or 90W | 94.17″ × 2.36″ × 2.65″ |
CCT/Power 8CSA: field-adjustable CCT (3500, 4000 or 5000K) and power. General options: EM5 emergency pack (>90 min., >500 lumens), EM12 emergency pack (>90 min., >1400 lumens), OSPIR passive infrared sensor, VHK V-hook and 40″ chain kit (set of 2). Ordering example: S-LED-4-44PS-8CSA. Consult factory for additional options.
Photometric files & test reports
| Model | Length | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|
S-LED2-25PS-8CSA_25W_35K | 2′ | 3500K | 25.4W | 3,313 | 130 | .ies · Report (PDF) |
S-LED2-25PS-8CSA_25W_5K | 2′ | 5000K | 25.3W | 3,389 | 134 | .ies · Report (PDF) |
S-LED4-44PS-8CSA_44W_35K | 4′ | 3500K | 45.7W | 5,914 | 129 | .ies · Report (PDF) |
S-LED4-44PS-8CSA_44W_5K | 4′ | 5000K | 45.5W | 6,007 | 132 | .ies · Report (PDF) |
S-LED8-90PS-8CSA_54W_4K* | 8′ | 4000K | 54W | 7,728 | 143 | .ies · Report (PDF) |
S-LED8-90PS-8CSA_75W_4K* | 8′ | 4000K | 75W | 10,205 | 136 | .ies · Report (PDF) |
S-LED8-90PS-8CSA_90W_4K* | 8′ | 4000K | 90W | 11,976 | 133 | .ies · Report (PDF) |
* 8′ files were prorated from measured data to the lumen output of the listed wattage, as noted in each IES file. All files are also available in a single IES photometric .zip.
Typical applications
retail, commercial, residential, clothes closet storage spaces
