Overview

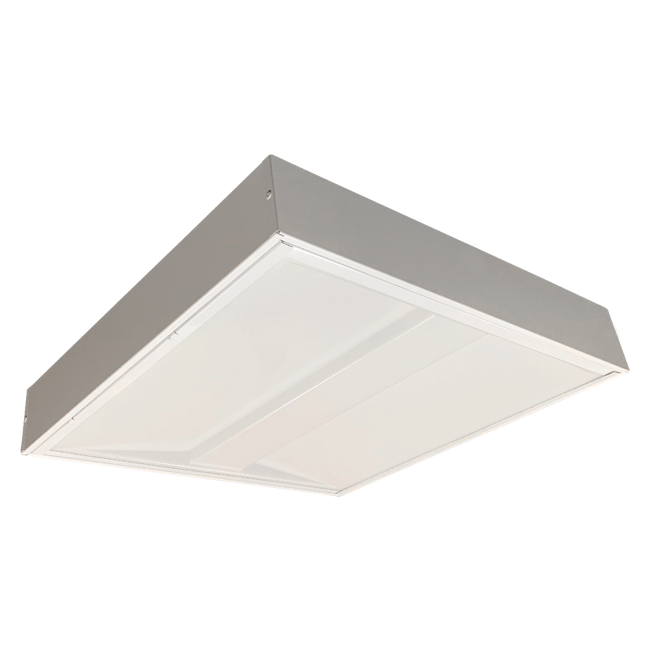

The SFL offers the look of contemporary fluorescent lighting with the efficiency and low maintenance of LED technology. An ideal choice for use in offices, hospitals, and schools. Available in 2×2 or 2×4 sizes.
Key features
- Linear arrayed LED modules provide even illumination and are field replaceable
- Formed lens is retained in hinged door frame
- Made from code gauge steel
- Surface or suspended mount
- Universal voltage 120-277V standard
- Custom driver tuning available for specific lumen requirements
- 0-10V or Lutron dimming
- 5 years – part replacement only warranty
Photometric files & test reports
| Model | Size | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
LFL22L40 | 2′×2′ | Low | 4000K | 20.9W | 2,340 | 112 | .ies · Report (PDF) |
LFL22M40 | 2′×2′ | Medium | 4000K | 30.2W | 3,230 | 107 | .ies · Report (PDF) |
LFL22H40 | 2′×2′ | High | 4000K | 37.9W | 3,986 | 105 | .ies · Report (PDF) |
LFL24L40 | 2′×4′ | Low | 4000K | 42.1W | 4,680 | 111 | .ies · Report (PDF) |
LFL24M40 | 2′×4′ | Medium | 4000K | 58.9W | 6,459 | 110 | .ies · Report (PDF) |
LFL24H40 | 2′×4′ | High | 4000K | 75.2W | 7,972 | 106 | .ies · Report (PDF) |
These IES files and test reports are the same files published for the recessed LFL Series. The SFL is the surface-mount version of the LFL, so these files are suitable for representing the SFL in lighting layouts and photometric calculations. For SFL lumen and wattage ratings, see the spec sheet.
Typical applications
offices, hospitals, schools
