Overview

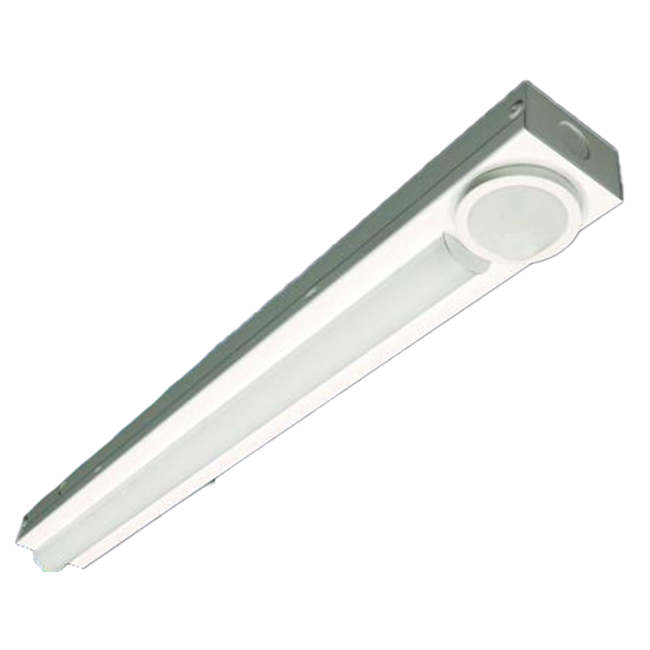

A multi-purpose Bi-Level LED utility luminaire with internally mounted infrared motion sensor featuring high-quality LED arrays from leading component manufacturers. Ideal for stairwells, corridors, restrooms and a variety of other areas. Offered in 2' and 4' lengths (nominal). Designed to be a long-lasting, low-maintenance luminaire, units are standard with low glare polycarbonate diffuser.
Key features
- Bi-level fixtures operate at a low standby light level, offering energy savings, safety and security with full light output instantly upon occupancy.
- Motion sensor options include 2-circuit (bi-level 50%, 25% or 10% dim) or on/off.
- Sensors are available with an optional ambient light sensor for daylight holdoff and choice of lens patterns providing maximum coverage for almost any application.
- Universal voltage 120-277V standard.
- All fixtures are U.L. Certified and Union made in the USA.
Photometric files & test reports
| Model | Length | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|
SSLED2430-XX | 2′ | 3000K | 14.4W | 1,474 | 102 | .ies · Report (PDF) |
SSLED2435-XX | 2′ | 3500K | 14.4W | 1,499 | 104 | .ies · Report (PDF) |
SSLED2440-XX | 2′ | 4000K | 14.4W | 1,548 | 107 | .ies · Report (PDF) |
SSLED2450-XX | 2′ | 5000K | 14.4W | 1,615 | 112 | .ies · Report (PDF) |
SSLED4830-XX | 4′ | 3000K | 24.4W | 2,784 | 114 | .ies · Report (PDF) |
SSLED4835-XX | 4′ | 3500K | 24.4W | 2,831 | 116 | .ies · Report (PDF) |
SSLED4840-XX | 4′ | 4000K | 24.4W | 2,924 | 120 | .ies · Report (PDF) |
SSLED4850-XX | 4′ | 5000K | 24.4W | 3,271 | 134 | .ies · Report (PDF) |
Typical applications
stairwells, corridors, restrooms
