Overview

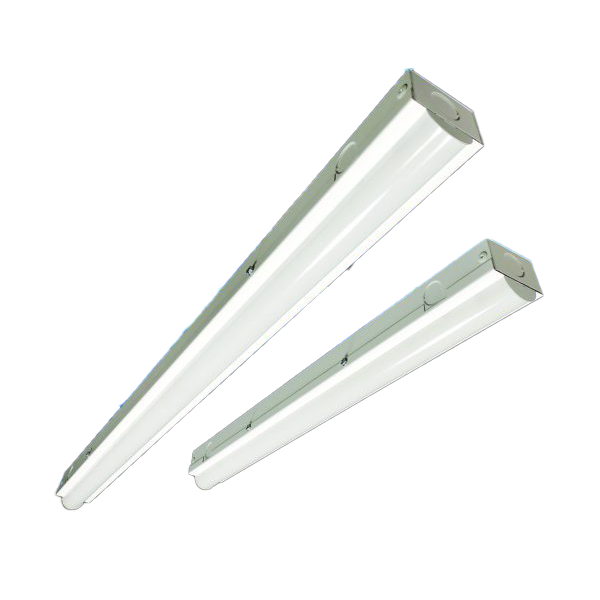

The Tiny Channel Strip LED is a compact strip fixture available up to 8′ long (nominal). Low, medium or high output models are suitable to meet most applications, it is ideal for showcases, coves and other hard-to-fit areas where normal strips cannot be utilized. The specially formulated frosted polycarbonate diffusers obscure the LED’s from view while providing excellent light transmission.
Key features
- Durable steel body
- Snap-on frosted lens, injection molded end caps
- Wireway covers attach simply with screws for easy maintenance
- Available in 2’, 3‘, 4’, 6‘ and 8’ lengths (nominal)
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- Surface or suspended mount
- Universal voltage 120-277V standard
- 0-10V or Lutron dimming
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
TCMLL48L-40 | 4′ | Low | 4000K | 20.2W | 2,375 | 118 | .ies · Report (PDF) |
TCMLL48M-40 | 4′ | Medium | 4000K | 34.9W | 3,940 | 113 | .ies · Report (PDF) |
TCMLL48H-40 | 4′ | High | 4000K | 53.8W | 5,675 | 105 | .ies · Report (PDF) |
TCMLL96L-40 | 8′ | Low | 4000K | 40.1W | 4,750 | 118 | .ies · Report (PDF) |
TCMLL96M-40 | 8′ | Medium | 4000K | 69.8W | 7,880 | 113 | .ies · Report (PDF) |
TCMLL96H-40 | 8′ | High | 4000K | 108.2W | 10,950 | 101 | .ies · Report (PDF) |
Typical applications
showcases, coves, hard-to-fit areas, commercial application, residential setting
