Overview

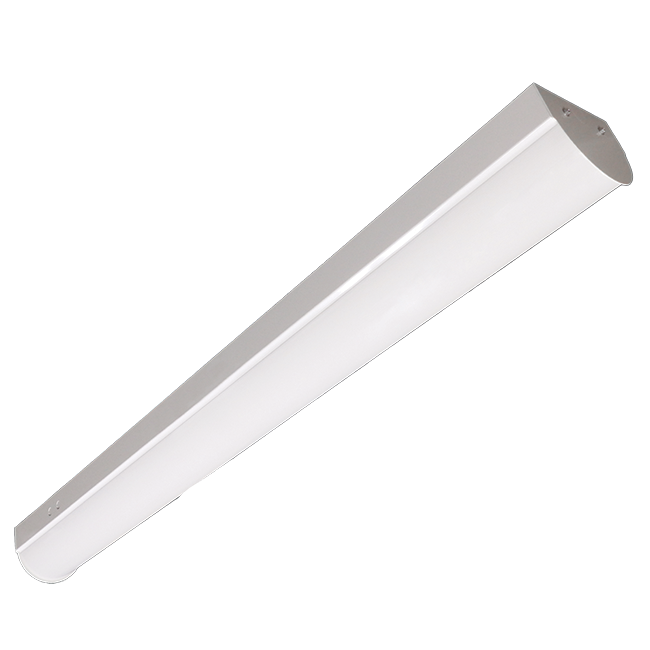

The TTH (TITAN HF) is a multi-purpose LED utility luminaire with internally mounted high-frequency motion sensor discreetly hidden behind the diffuser. Featuring high-quality LED arrays from leading component manufacturers, it is designed to be a long-lasting, low-maintenance luminaire. Units ship standard with low glare, impact-resistant round diffuser.
Key features
- Bi-level fixtures operate at a low standby light level
- Motion sensor options include “A” adjustable-standby (10, 20, 30, or 50% of full output) and “FO” (on/off)
- Sensors are equipped with an ambient light sensor for daylight holdoff
- Toolless removal of board gear tray allow for easy installation and field maintenance
- Stem mount or surface mount on ceiling or wall
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
DLXX48L-30-2CXX | 4′ | Low | 3000K | 22.5W | 2,790 | 124 | .ies · Report (PDF) |
DLXX48M-30-2CXX | 4′ | Medium | 3000K | 28.5W | 3,356 | 118 | .ies · Report (PDF) |
DLXX48H-30-2CXX | 4′ | High | 3000K | 49.6W | 5,935 | 120 | .ies · Report (PDF) |
These IES files and test reports were measured on the DL Series Bi-Level (4′, 3000K). The DL shares the TITAN HF’s die-formed steel housing and ribbed polycarbonate diffuser, so these files are suitable for representing the TITAN HF in lighting layouts and photometric calculations. For TITAN HF lumen and wattage ratings by length and CCT, see the spec sheet.
Typical applications
stairwells, corridors, restrooms
