Overview

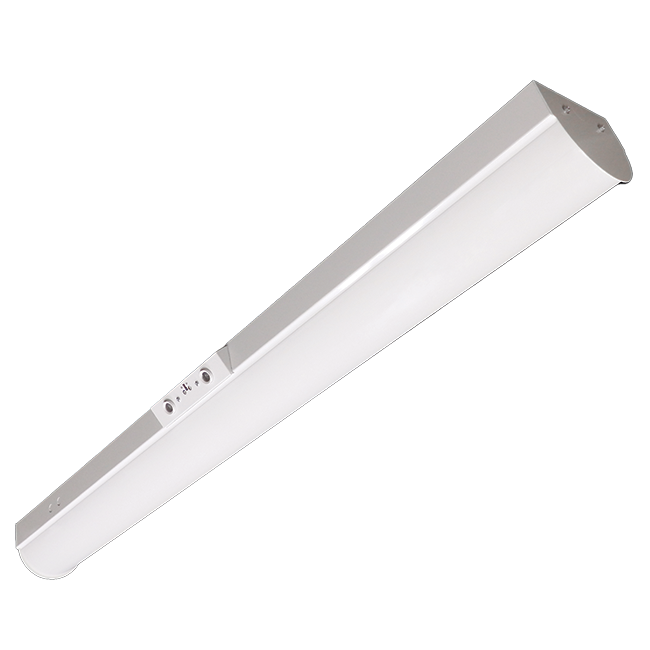

The Titan series is part of our expanding Occu-Smart® product line. Equipped with an ultrasonic motion sensor, the Titan U (TTU) features bi-level operation with adjustable standby light levels, time delay, and sensitivity for maximum energy savings. It is designed to be a long-lasting, low-maintenance luminaire shipped standard with a low glare, impact-resistant round diffuser.
Key features
- Bi-level fixtures operate at a low standby light level, offering energy savings, safety, and security with full light output instantly upon occupancy.
- Equipped with an ultrasonic motion sensor with adjustable standby levels (10, 25, or 50%).
- Die-formed housings of code gauge steel for long-term dependable service.
- Toolless removal of board gear tray for easy installation and maintenance.
- High impact frosted polycarbonate diffuser retained by injection molded end caps.
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
DLXX48L-30-2CXX | 4′ | Low | 3000K | 22.5W | 2,790 | 124 | .ies · Report (PDF) |
DLXX48M-30-2CXX | 4′ | Medium | 3000K | 28.5W | 3,356 | 118 | .ies · Report (PDF) |
DLXX48H-30-2CXX | 4′ | High | 3000K | 49.6W | 5,935 | 120 | .ies · Report (PDF) |
These IES files and test reports were measured on the DL Series Bi-Level (4′, 3000K). The DL shares the TITAN U’s die-formed steel housing and ribbed polycarbonate diffuser, so these files are suitable for representing the TITAN U in lighting layouts and photometric calculations. For TITAN U lumen and wattage ratings by length and CCT, see the spec sheet.
Typical applications
stairwells, corridors, restrooms
