Overview

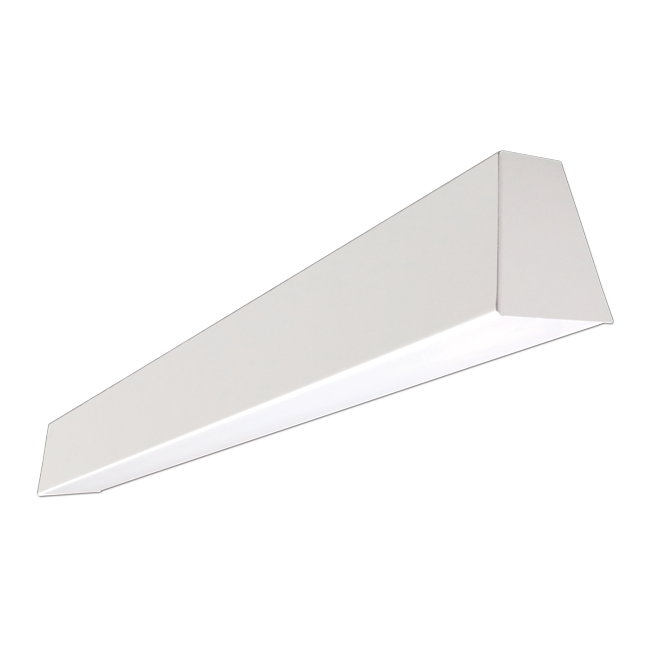

An architecturally appealing triangular linear surface or suspended mounted. Featuring high quality LED components from leading manufacturers and available in 3 power settings (low, med and high). Precision fabricated steel construction is an economic alternative to extruded aluminum.
Key features
- Custom extruded diffuser offers high light transmission with excellent LED diffusion.
- Precision fabricated steel construction is an economic alternative to extruded aluminum.
- Available in 2’, 3’, 4’, 6’ and 8’ lengths (nominal)
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- Surface or cable mount (specify “AC” when ordering)
- Universal voltage 120-277V standard
- 0-10V or Lutron dimming
- 5 years – part replacement only warranty
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
TRSD48L40 | 4′ | Low | 4000K | 24.4W | 2,775 | 113 | .ies · Report (PDF) |
TRSD48M40 | 4′ | Medium | 4000K | 32.4W | 3,641 | 112 | .ies · Report (PDF) |
TRSD48H40 | 4′ | High | 4000K | 49.1W | 5,286 | 108 | .ies · Report (PDF) |
Typical applications
office, school, healthcare, commercial application, residential setting
