Overview

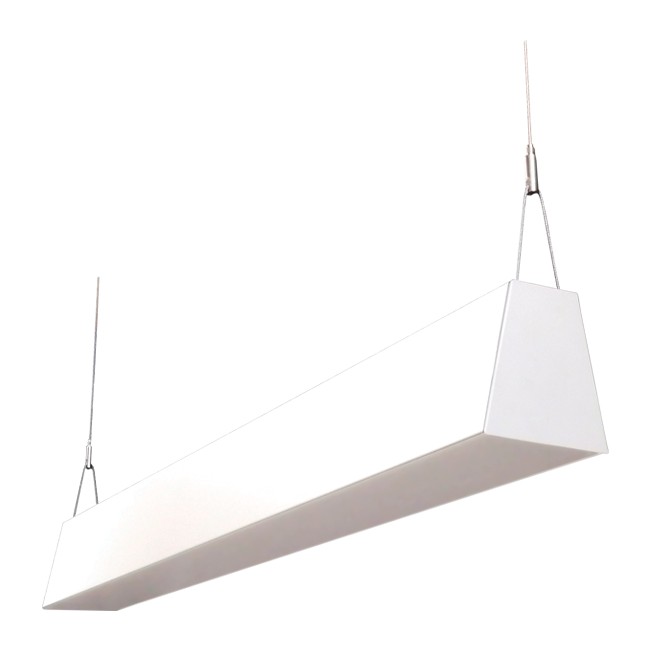

An architecturally appealing narrow linear cable hung triangular LED up/down light. Featuring high quality LED components from leading manufacturers and available in 3 power settings (low, med and high). Precision fabricated steel construction provides an economic alternative to extruded aluminum.
Key features
- Custom extruded diffuser offers high light transmission with excellent LED diffusion
- Precision fabricated steel construction is an economic alternative to extruded aluminum
- Available in 2’, 3’, 4’, 6’ and 8’ lengths (nominal)
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified and Union made in the USA
- Meets Buy America Act (BAA), BABA Compliant
- Universal voltage 120-277V standard
- 0-10V or Lutron dimming
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
TRSDI48L40 | 4′ | Low | 4000K | 46.6W | 5,634 | 121 | .ies · Report (PDF) |
TRSDI48M40 | 4′ | Medium | 4000K | 62.6W | 7,394 | 118 | .ies · Report (PDF) |
TRSDI48H40 | 4′ | High | 4000K | 98.3W | 10,735 | 109 | .ies · Report (PDF) |
Typical applications
Commercial application, Residential setting
