Overview

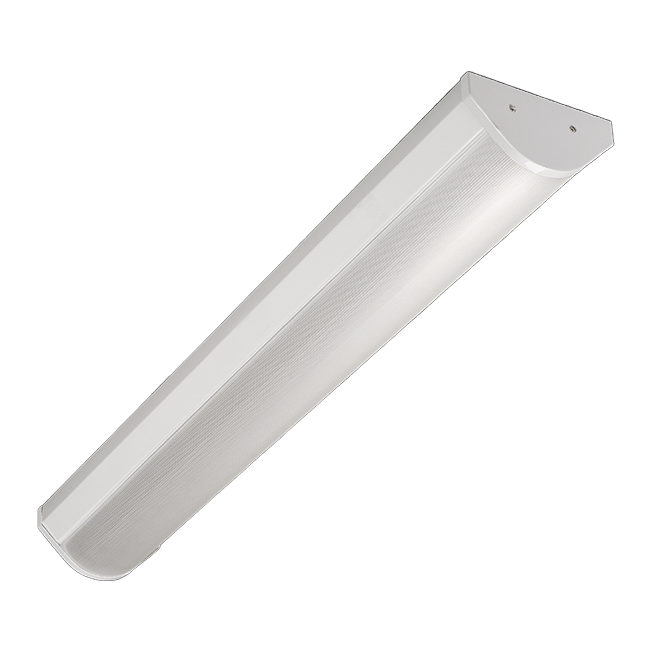

Decorative all-purpose luminaire available in 2' and 4' lengths with three power options (Low, Medium, High). Features a linear extruded frosted impact-resistant polycarbonate diffuser and code-gauge cold-rolled steel housing with die-formed ends. Compatible with Occu-Smart motion sensor controls. UL Certified, Union made in the USA, BAA and BABA Compliant.
Key features
- Available in 2' and 4' lengths
- Three power options (Low, Med, High)
- Frosted impact-resistant polycarbonate diffuser
- Code-gauge cold-rolled steel housing
- Occu-Smart compatible
- UL Certified, Union made in USA
- BAA / BABA Compliant
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
VOL24AFAMCT-30-H | 2′ | High | 3000K | 21.9W | 2,376 | 108 | .ies · Report (PDF) |
VOL48AFAMCT-30-H | 4′ | High | 3000K | 41.7W | 5,046 | 121 | .ies · Report (PDF) |
These IES files and test reports were measured on the VOL Gen6 (2′ and 4′, High, 3000K). The VOL Gen6 shares the VL Series’s 8″-wide steel housing and frosted impact-resistant polycarbonate diffuser, so these files are suitable for representing the VL Series in lighting layouts and photometric calculations. For VL Series lumen and wattage ratings by length, power and CCT, see the spec sheet.
Typical applications
schools, hospitals, retail, commercial buildings
