Overview

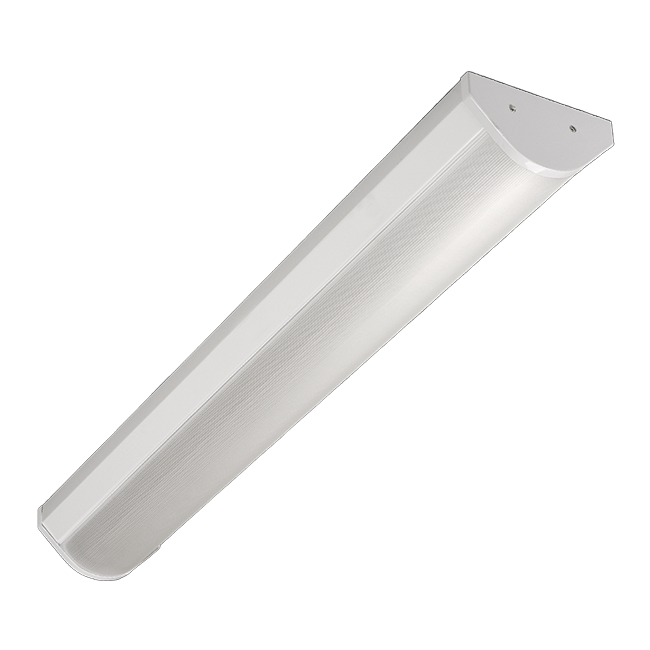

The VOLH is an attractive LED bi-level luminaire featuring high frequency microwave technology. It offers field adjustable standby dim levels and time delay settings with a sensor completely hidden from view. Consuming as little as 3W in 'standby-mode', it is an energy-saving option ideal for stairwells and other low-occupancy spaces.
Key features
- High frequency microwave technology
- Field adjustable standby dim levels (5, 10, 20, or 30%)
- Time delay settings (5s up to 30 min)
- Frosted impact-resistant polycarbonate diffuser (up to 94% transmittance)
- Durable steel housing and injection molded end caps
- Optional Multi-Color Tuning (3000K, 3500K, 4000K)
- UL Certified, ADA compliant
- Union made in the USA, Meets Buy America Act (ARRA)
- Universal voltage 120-277V standard
Photometric files & test reports
| Model | Length | Power | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
VOL24AFAMCT-30-H | 2′ | High | 3000K | 21.9W | 2,376 | 108 | .ies · Report (PDF) |
VOL48AFAMCT-30-H | 4′ | High | 3000K | 41.7W | 5,046 | 121 | .ies · Report (PDF) |
These IES files and test reports were measured on the VOL Gen6 (2′ and 4′, High, 3000K). The VOL Gen6 shares the VOLH’s 8″-wide steel housing and frosted impact-resistant polycarbonate diffuser, so these files are suitable for representing the VOLH in lighting layouts and photometric calculations. For VOLH lumen and wattage ratings by length, power and CCT, see the spec sheet.
Typical applications
stairwells, multi-story buildings, life safety environment, commercial application, residential setting
