Overview

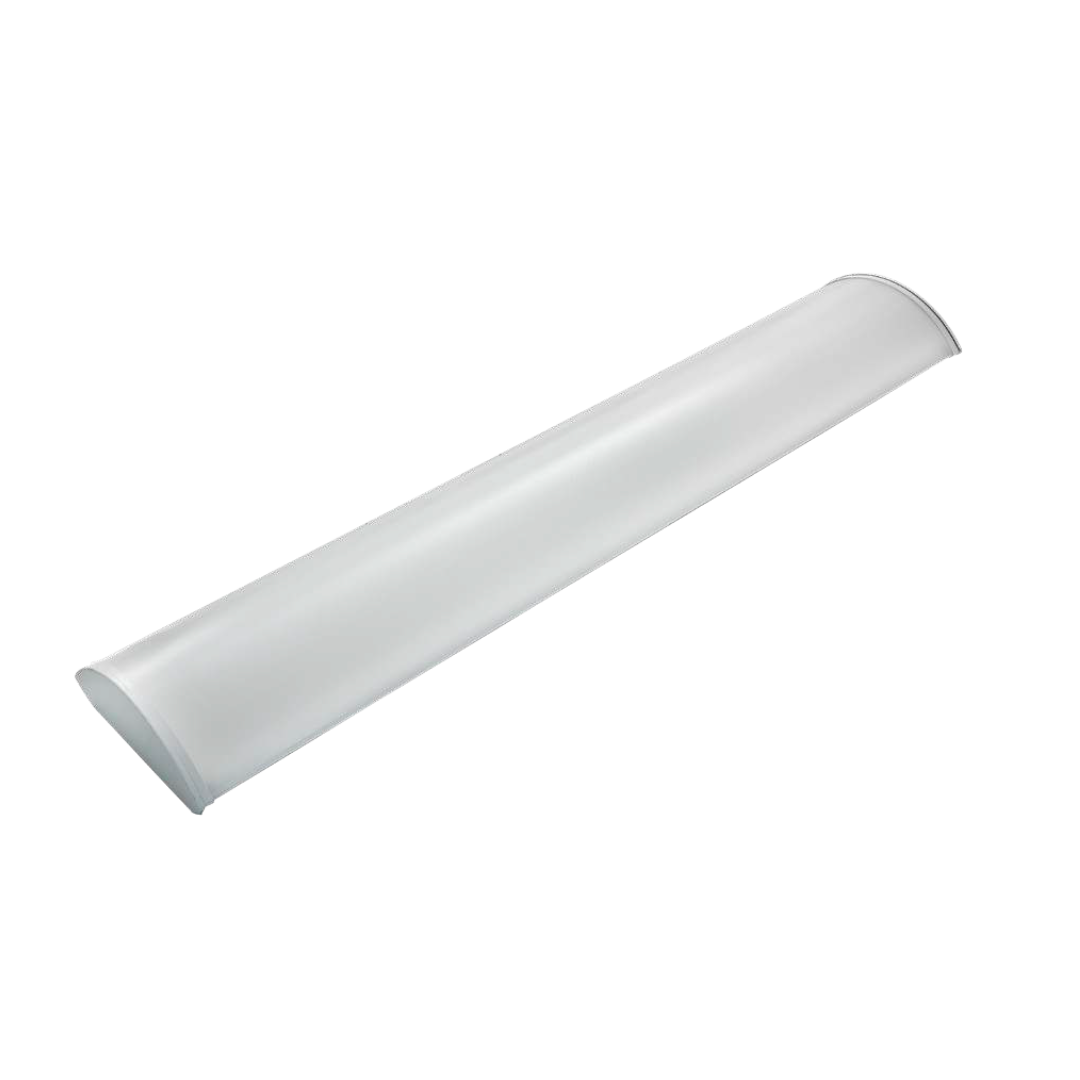

The WCLA series is a decorative all-purpose wraparound luminaire ideal for schools, hospitals, retail and commercial buildings. Durable steel body die-formed from code gauge cold rolled steel with a one piece extruded frosted acrylic lens. Available in 4' length with field adjustable CCT and lumen output.
Key features
- Durable steel body die-formed from code gauge cold rolled steel
- One piece extruded frosted acrylic lens
- Suitable for installation within a clothes closet storage space
- Available in 4’ length (nominal)
- All electrical components are U.L. listed or recognized
- All fixtures are U.L. Certified
- 0-10V Dimming to 10% standard
Photometric files & test reports
| Model | Length | Power setting | CCT | Input watts | Lumens | lm/W | Download |
|---|---|---|---|---|---|---|---|
WCL48A-40 (44W) | 4′ | 44W | 4000K | 44.2W | 6,247 | 141 | .ies · Report (PDF) |
Typical applications
schools, hospitals, retail, commercial buildings
