by Lamar LED

LLS Linear Lighting System

The only specification-grade linear LED manufactured in the USA that allows any custom run length — no limits, no compromises.

LLS recessed linear lighting with continuous 90-degree corners in an office corridor
Lamar LED Flagship

Create the Design You Want Without Limits

The LLS Linear Lighting System is the flagship architectural product in the Lamar LED portfolio — and the only specification-grade continuous-row linear LED manufactured domestically that supports any custom run length. From 2-foot accent runs to 200-foot perimeter circuits, every system is precision-fabricated at our Central Islip facility with no field cutting required. Standard 90° or custom-angle corners, fully lit inside and outside transitions, and field-selectable CCT make LLS the specifier’s choice for projects that demand both design freedom and American manufacturing.

  • Any custom run length — precision cut to order, no field cutting
  • Standard 90° or custom-angle corners
  • Fully lit inside & outside corners — zero dark spots at transitions
  • Recessed mounting
  • Multi-color tuning LED boards — field-selectable 3000K / 3500K / 4000K
From the Lamar LED heritage

The linear catalog that built the Lamar name — now domestically manufactured at any custom length.

LLS is the spec-grade linear platform that originated in the Lamar LED architectural catalog. After the catalog was integrated into Clear-Vu Lighting, every LLS fixture was brought in-house — same engineering team, same union assembly, same Long Island factory — with the BABA/BAA documentation and warranty of the broader Clear-Vu platform.

Read the Lamar LED story →

Key Specifications

Custom Length Any run length — precision cut to order
Corner Options Standard 90°, custom fixed angles
Lit Corners Fully illuminated inside & outside corners — zero dark spots
Lumen Output Up to 750 lumens per foot
Light Transmission Frosted acrylic diffuser, > 85% transmission
Correlated Color Temperature 3000K / 3500K / 4000K field-selectable (MCT board)
CRI > 80
Mounting Recessed
Housing Precision fabricated steel, IC rated for insulated ceilings
Lens Frosted acrylic — lift-and-shift or snap-in options
Dimming 0-10V standard, DALI optional
Voltage 120-277VAC universal
Rated Lifespan L80 > 50,000 hours
Certifications UL Listed, BABA/BAA Compliant, IC Rated

LLS System Components

Every LLS installation is built from modular components — base modules, expansion modules, and corner units that combine to create any configuration.

Base Module
Primary fixture unit with driver and LED board. Custom length to specification.
Expansion Module
Field-adjustable extension modules for continuous-row runs of any length.
Corner Module
Standard 90° or custom fixed angles. Fully lit — no dark spots.
Cross Module
4-way intersection for grid configurations and crossing patterns.
T-Module
3-way tee junction for branching runs and perpendicular extensions.
Perimeter Skirt
Adjustable perimeter trim for recessed grid and new-construction installations.

Features & Benefits

Any Custom Run Length

The only domestically manufactured specification-grade linear LED that accepts any custom run length. Precision-fabricated steel housing eliminates field cutting, ensuring clean joints and uniform illumination across the entire run.

Custom Corners

Standard 90° corners ship ready to install. Custom fixed-angle corners enable L-shapes, U-shapes, rectangles, and complex geometric configurations on-site.

Fully Lit Corners

Both inside and outside corners are fully illuminated — no dark spots, no shadows at transitions. Continuous light line maintained through every turn, creating the seamless architectural effect specifiers demand.

Multi-Color Tuning

Field-selectable 3000K, 3500K, or 4000K via MCT LED boards. One SKU supports multiple color temperature specifications. Optional color tuning control enables dynamic CCT shifting for circadian or scene programming.

Contractor-Friendly Installation

Precision-fabricated housing requires zero field cutting. Lift-and-shift or snap-in lens options speed installation. Field-adjustable expansion modules adapt to as-built conditions without returning to the factory.

BABA/BAA Compliant

Designed and manufactured at our 100,000 sq ft Central Islip, NY facility. Union made. IC rated for insulated ceiling installation. Fully BABA and BAA compliant for federal and infrastructure projects.

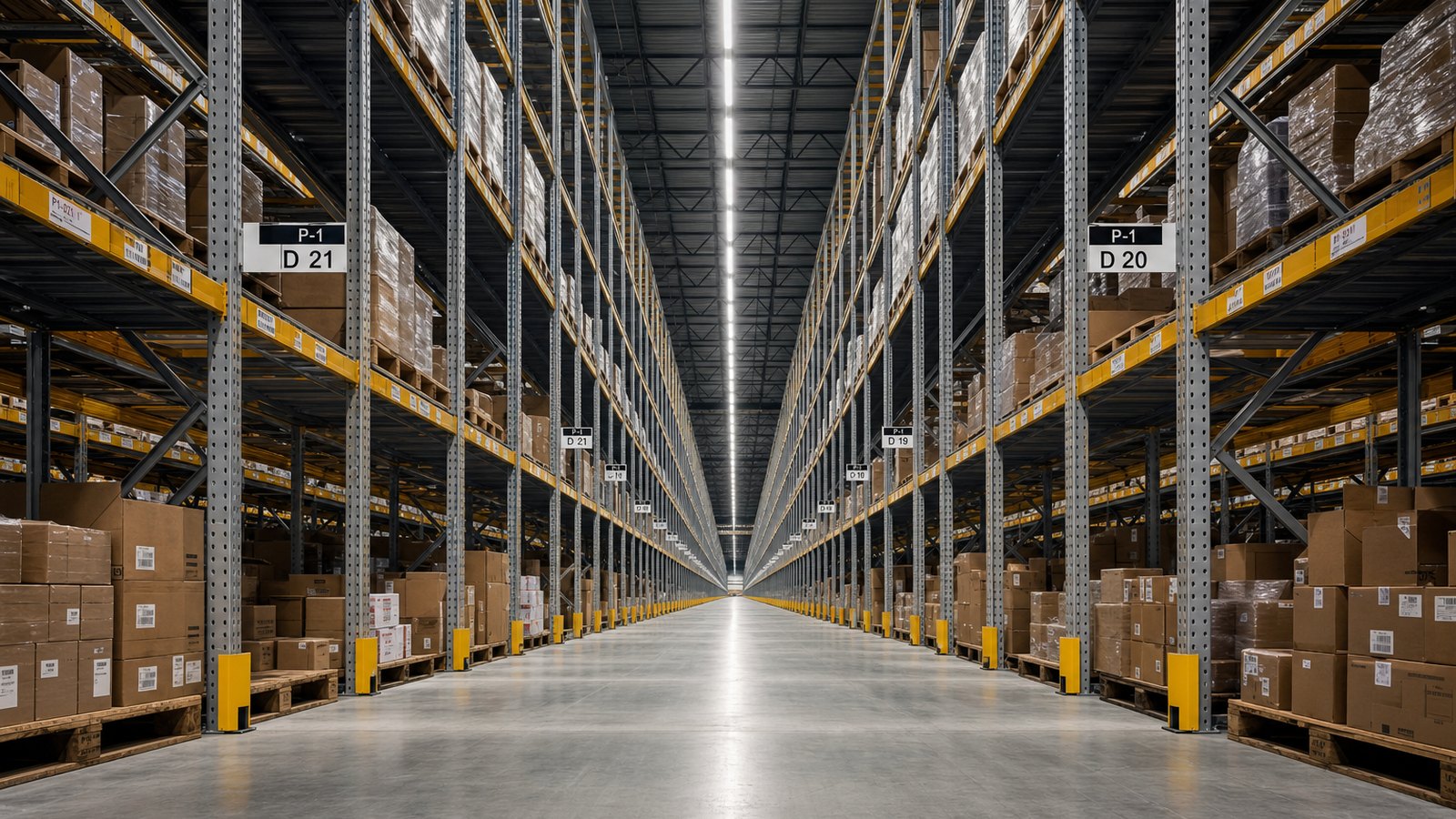

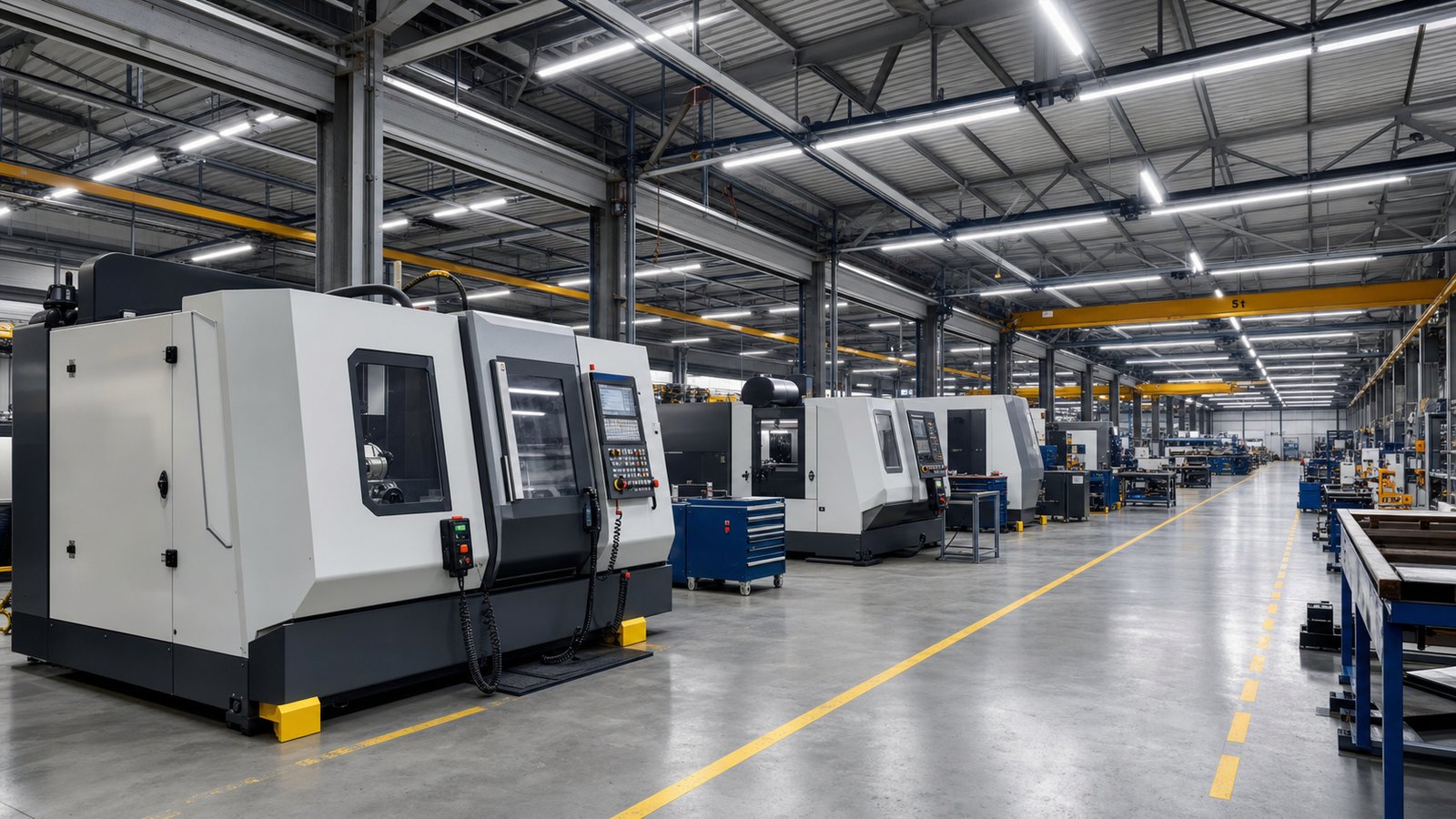

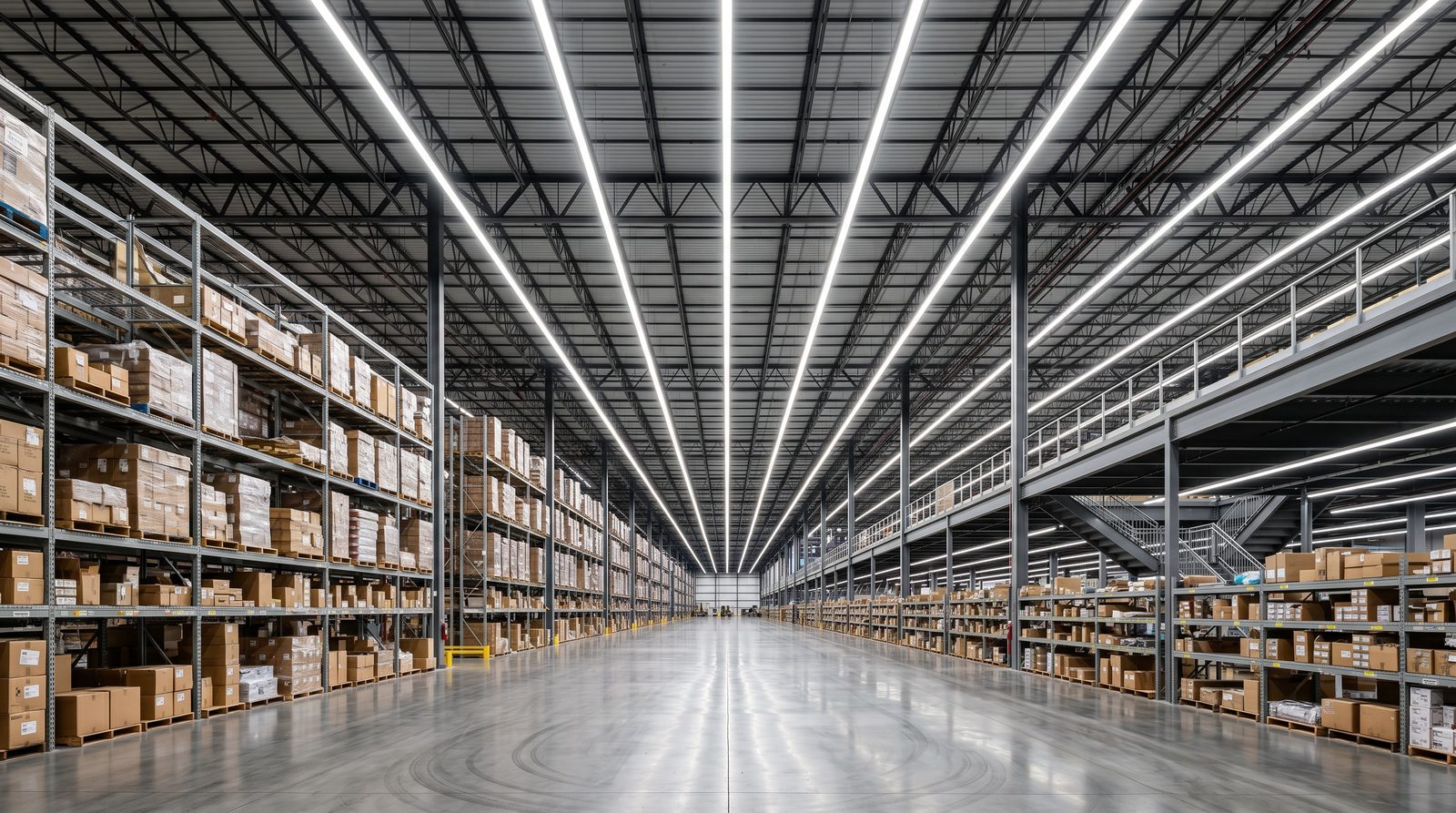

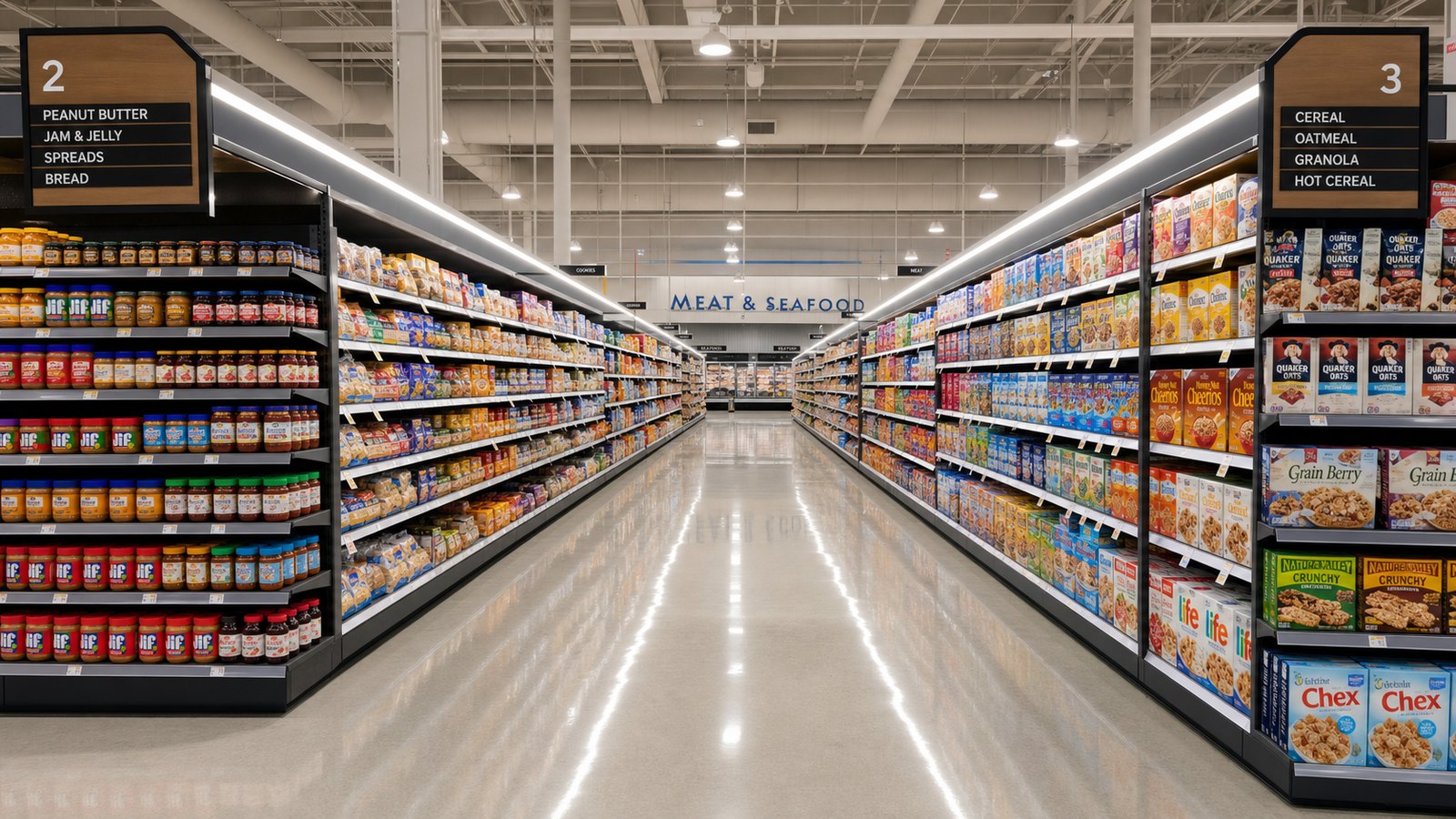

Applications

The LLS system is specified in any environment where continuous-row linear illumination defines the architectural character of the space.

Ready to Specify LLS?

Our linear lighting specialists provide custom run length quotes, corner configuration drawings, and photometric layouts for your project.

LLS Compliance & Certifications

Product-level compliance status. For project-specific certificates of compliance, contact sales@clearvulighting.com.

  • BABA/BAA
    Manufactured in Central Islip, NY
  • UL Listed
    UL 1598 listed
  • DLC Qualified
    Listed configurations available; verify model + wattage
  • CCT Options
    Field-switchable MCT (3000K/3500K/4000K) on select series
  • Custom Run Lengths
    American-made specification-grade linear LED platform
  • Union Made
    Built by American labor

Note: DLC qualification status varies by model number, wattage, and configuration. Always verify the specific DLC product ID at designlights.org for utility rebate eligibility.
