Specialty Lighting
CLEAR-VU TRANSPORTATION LIGHTING
VerticaLED: Emergency & Specialty Lighting
24 VDC, flexible, opal encapsulated, IP67 protected LED light lines with a cross section of 0.39” x 0.81” (w x h) and vertical bending direction (top view). 3M self adhesive tape on rear side. Homogeneous and dot free illumination with very low installation depths. Can be delivered in lengths of 2, 4, 6, and 8 feet. Custom length available upon request.
IP67 plug in connectors on both ends. At maximum length only one side with IP67 plug in connector male, no female connector. Standard leader cable 6’ length with female IP67 connector included. Lifetime of greater than 60,000 hours (L80/B10). Easy installation and a rugged design for harsh environments. Consult factory if dimming is required.
SPECIFICATIONS & FEATURES
DIMENSIONAL DATA & PHOTOMETRICS
METRO Tube 8Accessory & Specialty Lighting
The most advanced LED tube lamp designed specifically for transit applications. Offers class leading efficacy, 360° illumination, single pin configuration (theft resistant), and direct line voltage input. Fixture tested to rigorous surge, EMI, shock, and vibration standards.
Listed for use in new and retrofit applications.
SPECIFICATIONS & FEATURES
High Efficiency Direct AC Design – connects directly to 95-295VAC input, no ballast or driver required. 140+ lumens per watt delivered.
Shatter-Shield Glass – maintains structural integrity over life of the tube, no requirement for waterproof seal between aluminum body and plastic lens typical to LED tubes.
360° Illumination – emits light in all directions unlike most LED tubes that have an aluminum back plate which limits distribution to 180-220° typically.
Safe Switch – embedded ASIC monitors connection between terminal pins to eliminate risk of electrical shock hazard during installation.
METRO Battery Tube 8Accessory & Specialty Lighting
The most advanced LED tube lamp designed specifically for transit applications now offers integral emergency battery backup. Class leading efficacy, uniform illumination with no diode hotspots, single pin configuration (theft resistant), and direct line voltage input. Fixture tested to rigorous surge, EMI, shock, and vibration standards. Listed for use in new and retrofit applications.
SPECIFICATIONS & FEATURES
High Efficiency Direct AC Design – connects directly to 95-295VAC input, no ballast or driver required. 140+ lumens per watt delivered.
Integral Emergency Battery Backup – up to 4 hours of battery backup hidden within the tube itself, automated UL924 self-test and manual test button with indicator.
High Efficiency Direct AC Design – connects directly to 95-295VAC input, no ballast or driver required. 130+ lumens per watt delivered.
Impact Resistant Lens – maintains structural integrity over life of the tube, maintains waterproof seal with aluminum body that houses battery and PCB.
Uniform Illumination – emits light in an aesthetic and uniform pattern optimized for wide distribution for station lighting applications, no LED hotspots.
Safe Switch – embedded ASIC monitors connection between terminal

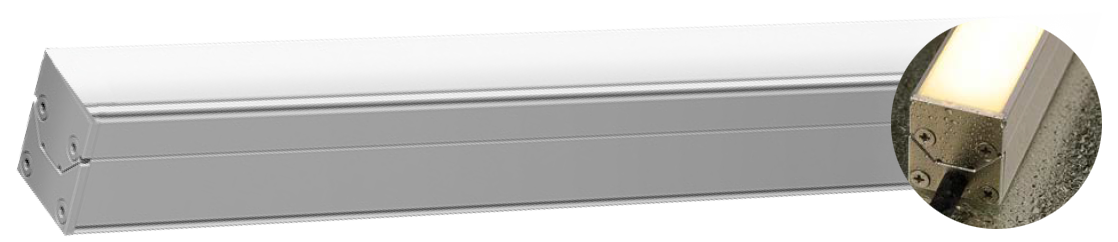

Integra LEDAccessory & Specialty Lighting
24 VDC, modular, light intensive linear LED luminaire in IP67 with adjustable luminaire head (45°). Installation friendly, attachable and durable luminaire housing with a small cross section made from extruded and anodized aluminum with screwed Al-end caps. Top extrusion detaches from the bottom extrusion which is the mounting channel as well as wire way. Available in silver or black profile color as surface-mounted version. 6.5’ open black cable AWG22. High quality and homogeneous illumination. Lifetime of > 60,000 hrs (L80/B10). Consult factory if dimming is required.
ELECTRICAL & OUTPUT DATA
Single bin only
Lifetime > 60,000 hours
LM 79 compliant
LM 80 compliant
UV-protected
Resistant to solvents
Saltwater resistant
Temporary immersion protection
Impact resistant

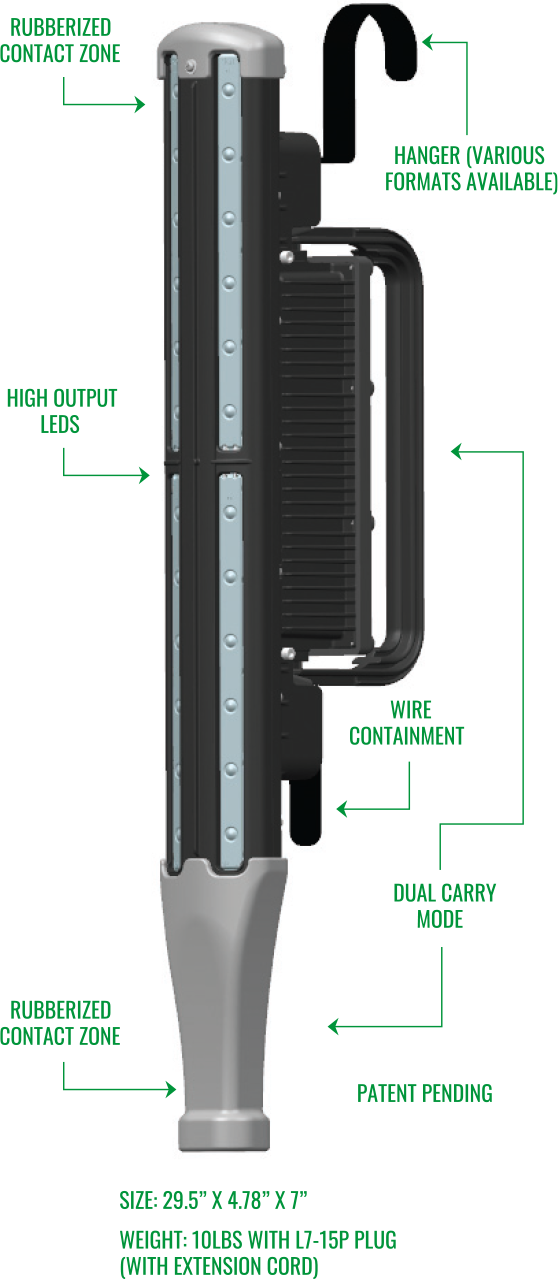

LED Portable Lamp BankAccessory & Specialty Lighting
Are your maintenence and repair personnel still using antiquated incandescent technology to illuminate hazardous underground operating environments? Clear-Vu Lighting has designed and developed an innovative, LED-based portable lighting system that is a tremendous leap forward in safety, effi ciency and functionality.
The LED Portable Lamp Bank overcomes the defi ciencies of the existing products currently in use to provide work and maintenance lighting for municipal transportation systems and other underground work sites.
ELECTRICAL & OUTPUT DATA
Construction
- Heavy-duty injection molded housing is zero halogen
- Automotive-grade polycarbonate lens assembly, with integrated cast aluminum heat sinks
Electrical: STANDARD ELECTRICAL INPUT (AC)
- LED Driver operating voltage: 90 – 305 VAC, 47 – 63 Hz – Portable battery pack option available
- Power Consumption: 70 Watts – nominal
- UL Recognized Class II Power Supply with Power Factor Correction
- Protection: short circuit, over current, over voltage, over temperature
- EMC Emission: EN55015, EN61000-3-2 Class C, EN61000-3-3
- EMC Immunity: EN6100-1-2, 3, 4, 5, 6, 8,11, EN55024
- Power Supply Safety Standards: UL 8750, CSA 22.2 No 250.0-08, ENG 61347-2-13 withstand voltage IP-FG 2KVAC
HIGH VOLTAGE INPUT (HV)
- LED Driver operating voltage: 450 – 1000 VDC, 600 VAC ± 15%
- Power Consumption: 75 Watts – nominal
- Surge / Transient Protection: – 1500 VDC @ 10 seconds, 2500 VDC @ 1 second, 3000 VDC @ 5 microseconds
- MIL-STD-461E EMI filter
Optics
- 24 High-output bright white LED’s (4100K)
- Proprietary, precision OptiClear™ Engine collimates and maximizes light distribution to target area while minimizing glare
- LEDs have a rated life of 70% lumen maintenance at 50,000 hours
Warranty/Listings
- 3 year limited warranty
- RoHS compliant
- LM-79 tested – results available upon request
Single bin only
Lifetime > 60,000 hours
LM 79 compliant
LM 80 compliant
UV-protected
Resistant to solvents
Saltwater resistant
Temporary immersion protection
Impact resistant
